Removal [06/2015 - ]: Procedure
- REMOVE MAP LIGHT ASSEMBLY
Refer to REMOVAL [06/2015 - ]
- REMOVE TELEPHONE MICROPHONE ASSEMBLY
- Disconnect the connector.

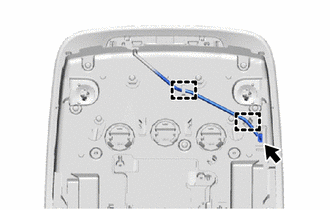

- Disengage the guides to separate the wire harness.

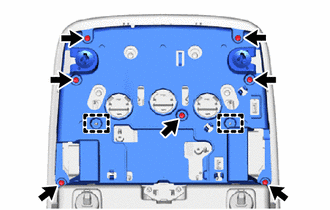

- Remove the 7 screws
- Disengage the guides to remove the cover.

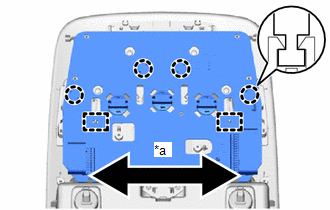

- Disengage the guides, and as shown in the illustration, slide to the left and right while disengaging the claws of each switch and knob, and remove the overhead junction block sub-assembly.
Sliding direction - Remove the 4 switch knobs.

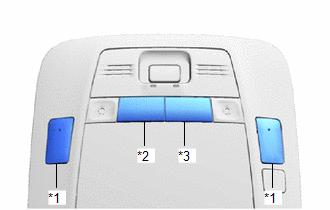

*1 Map Knob *2 Door Knob *3 Room Knob - Disengage the claws to remove the telephone microphone assembly.

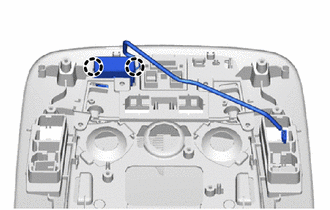

- Disconnect the connector.
