Components [06/2015 - ]

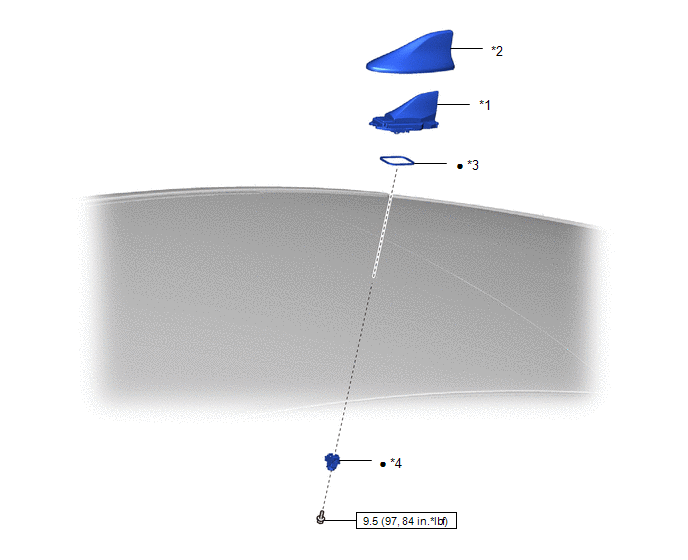

Fig 1: Roof Antenna Replacement Components With Torque Specifications
GTY543619Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 TELEPHONE ANTENNA ASSEMBLY *2 ANTENNA OUTER COVER
*3 SEAL *4 WASHER AND HOLDER
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
