Parts Location [06/2015 - ]: Illustration

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

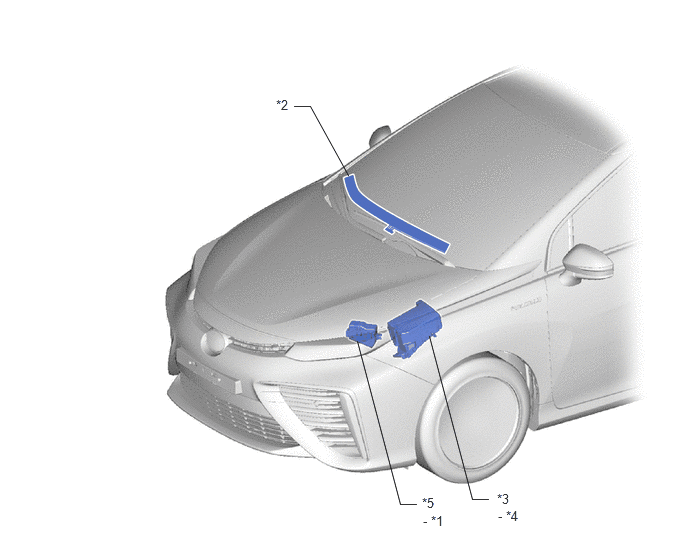

*1	FRONT WIPER DEICER RELAY (DEICER RELAY)	*2	WINDSHIELD GLASS (WINDSHIELD DEICER WIRE)
*3	MOTOR COMPARTMENT RELAY BLOCK	*4	DEICER FUSE
*5	NO. 3 MOTOR COMPARTMENT RELAY BLOCK	-	-

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

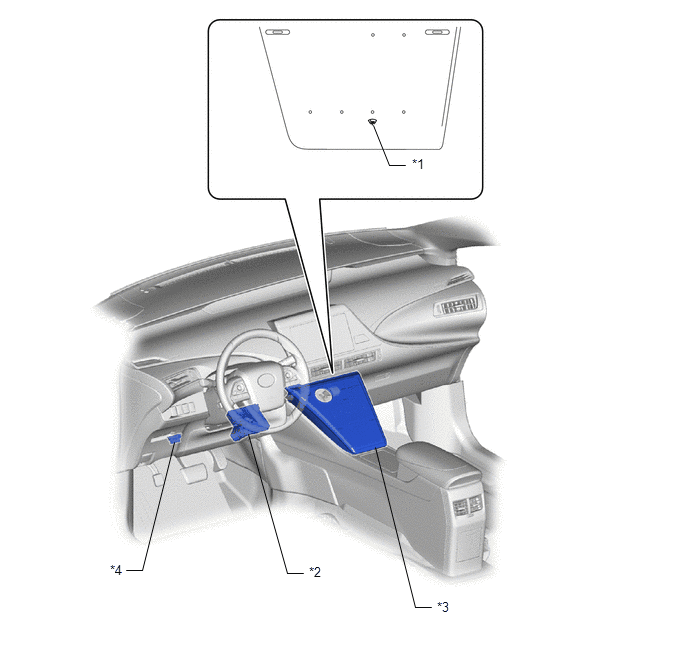

*1	WINDSHIELD DEICER SWITCH	*2	AIR CONDITIONING AMPLIFIER ASSEMBLY
*3	INTEGRATION CONTROL AND PANEL ASSEMBLY	*4	DLC3
