Parts Location [06/2015 - ]: Illustration

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

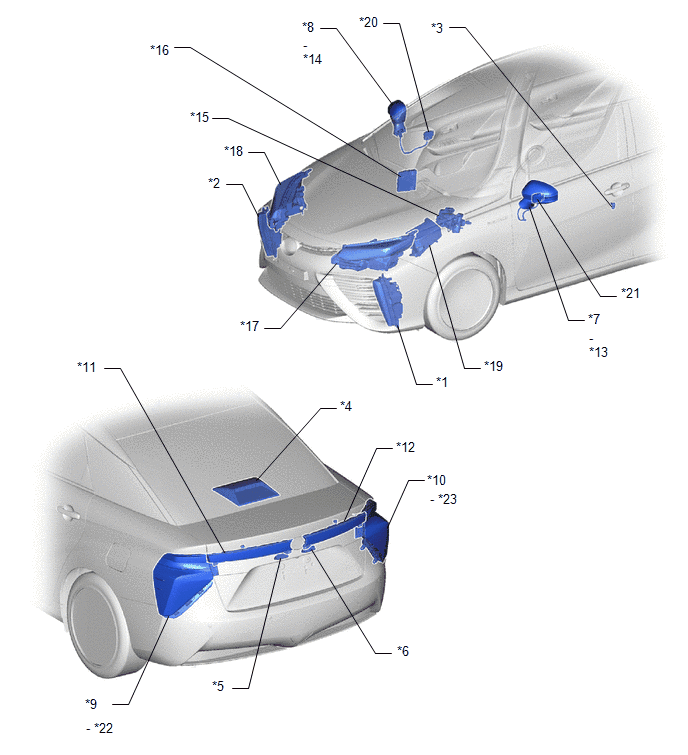

*1	CLEARANCE LIGHT ASSEMBLY LH	*2	CLEARANCE LIGHT ASSEMBLY RH
*3	FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY LH	*4	CENTER STOP LIGHT ASSEMBLY
*5	LICENSE PLATE LIGHT ASSEMBLY LH	*6	LICENSE PLATE LIGHT ASSEMBLY RH
*7	OUTER REAR VIEW MIRROR ASSEMBLY LH	*8	OUTER REAR VIEW MIRROR ASSEMBLY RH
*9	REAR COMBINATION LIGHT ASSEMBLY LH	*10	REAR COMBINATION LIGHT ASSEMBLY RH
*11	REAR LIGHT ASSEMBLY LH	*12	REAR LIGHT ASSEMBLY RH
*13	SIDE TURN SIGNAL LIGHT ASSEMBLY LH	*14	SIDE TURN SIGNAL LIGHT ASSEMBLY RH
*15	BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY	*16	EV CONTROL ECU
*17	HEADLIGHT ASSEMBLY LH - HEADLIGHT LIGHT CONTROL ECU SUB-ASSEMBLY LH - HEADLIGHT UNIT LH - HEADLIGHT UNIT ASSEMBLY LH - HEADLIGHT LEVELING MOTOR LH - HEADLIGHT FAN LH	*18	HEADLIGHT ASSEMBLY RH - HEADLIGHT LIGHT CONTROL ECU SUB-ASSEMBLY RH - HEADLIGHT UNIT RH - HEADLIGHT UNIT ASSEMBLY RH - HEADLIGHT LEVELING MOTOR RH - HEADLIGHT FAN RH
*19	MOTOR COMPARTMENT RELAY BLOCK - DC/DC FUSE - STOP FUSE - H-LP-MAIN RH FUSE - H-LP-MAIN RH RELAY - H-LP-MAIN LH FUSE - H-LP-MAIN LH RELAY - DRL RH FUSE - DRL LH FUSE	*20	OUTER MIRROR CONTROL ECU ASSEMBLY RH
*21	OUTER MIRROR CONTROL ECU ASSEMBLY LH	*22	REAR COMBINATION LIGHT SOCKET AND WIRE SUB-ASSEMBLY LH
*23	REAR COMBINATION LIGHT SOCKET AND WIRE SUB-ASSEMBLY RH	-	-

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

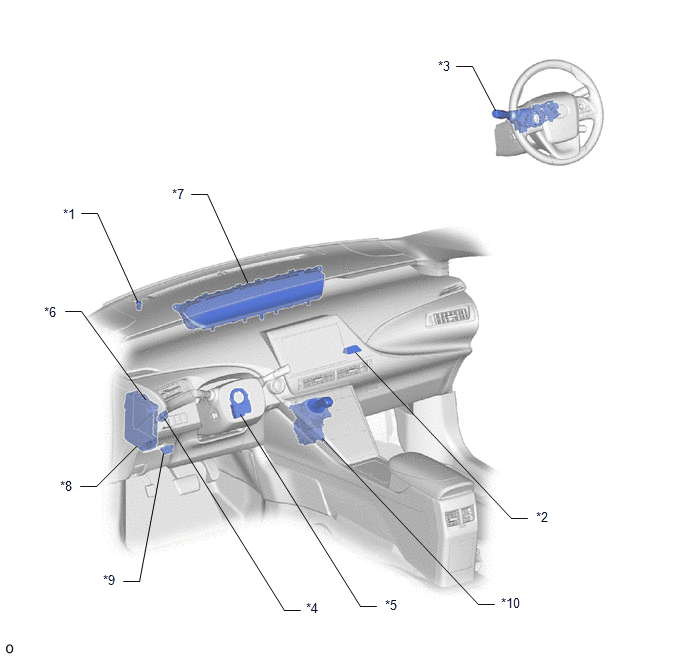

*1	AUTOMATIC LIGHT CONTROL SENSOR	*2	HAZARD WARNING SIGNAL SWITCH ASSEMBLY
*3	HEADLIGHT DIMMER SWITCH ASSEMBLY	*4	STOP LIGHT SWITCH ASSEMBLY
*5	STEERING SENSOR	*6	MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)
*7	COMBINATION METER ASSEMBLY	*8	INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-B NO. 4 FUSE - ECU-ACC FUSE - ACC RELAY - ECU-IG1 NO. 1 FUSE - ECU-IG NO. 3 FUSE - HAZ FUSE - ECU-B NO. 1 FUSE - METER-IG2 FUSE - IG1 NO. 3 RELAY - TAIL FUSE - TAIL RELAY - BKUP LP FUSE - BKUP LP RELAY - FOG RR FUSE - FOG RR RELAY
*9	DLC3	*10	TRANSMISSION INSTRUMENT PANEL SHIFT ASSEMBLY
