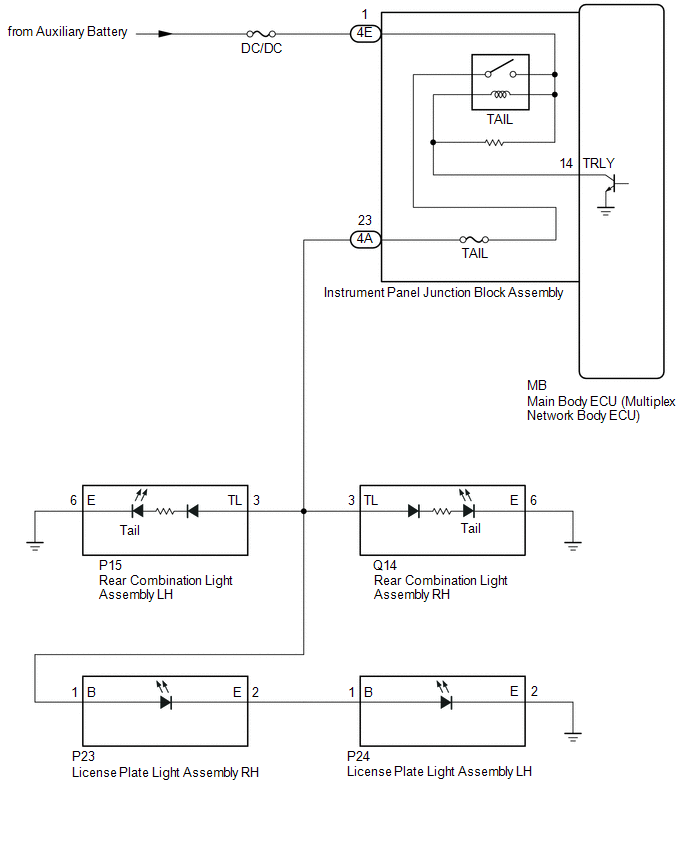

Taillight Relay Circuit [06/2015 - ]: Wiring Diagram

GTY545754

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
