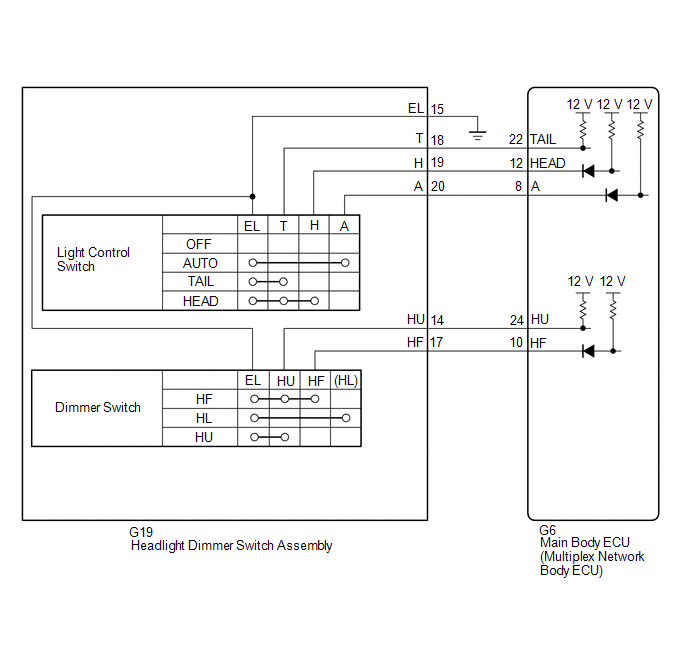

Headlight Dimmer Switch Circuit [06/2015 - ]: Wiring Diagram

GTY580285

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
