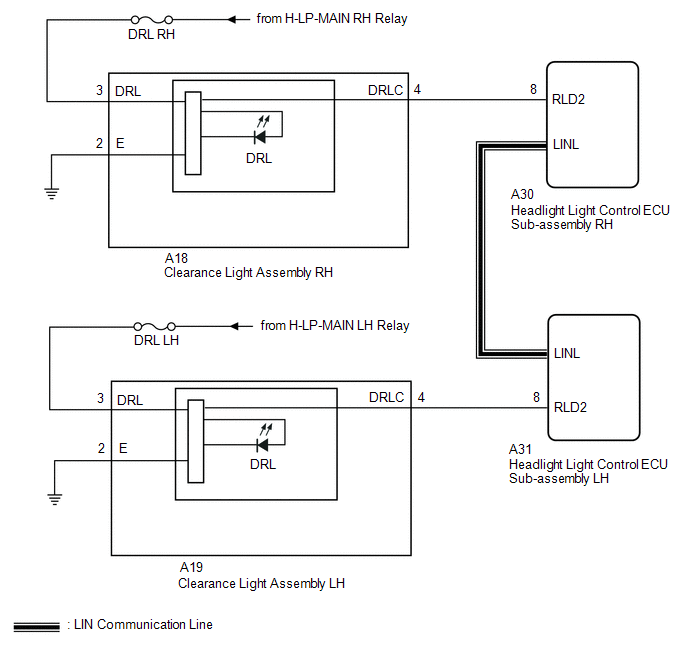

Daytime Running Light Relay Circuit [06/2015 - ]: Wiring Diagram

GTY589778

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
