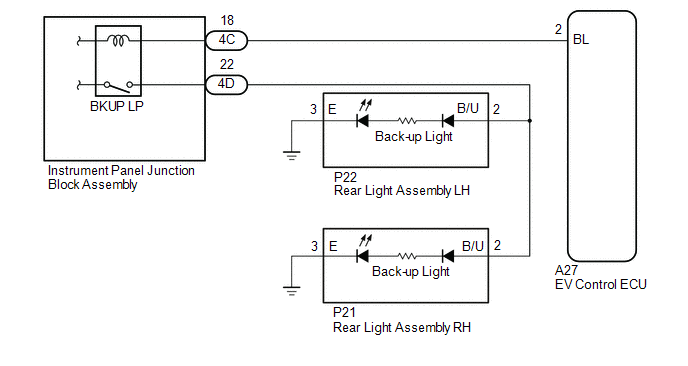

Back-up Light Circuit [06/2015 - ]: Wiring Diagram

GTY582785

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
