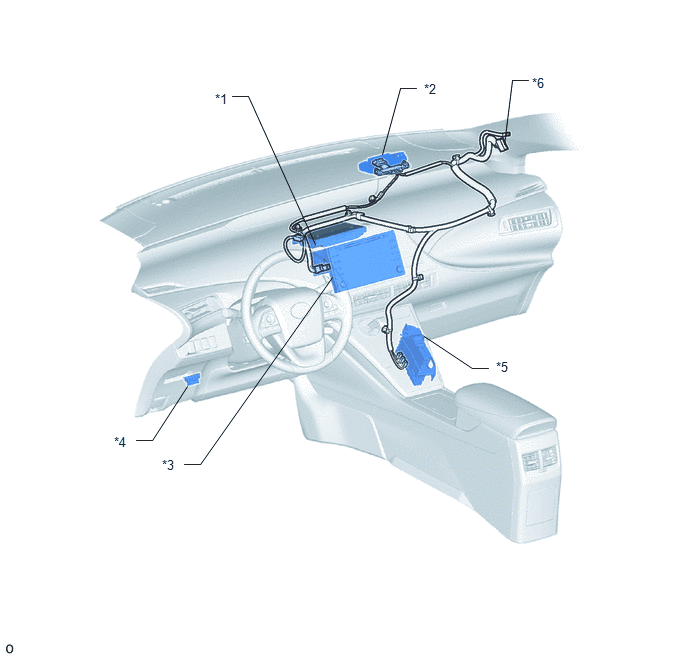

Parts Location [01/2018 - ]: Illustration

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	NAVIGATION ECU	*2	NAVIGATION ANTENNA ASSEMBLY - Telephone Sub
*3	RADIO AND DISPLAY RECEIVER ASSEMBLY	*4	DLC3
*5	DCM (TELEMATICS TRANSCEIVER)	*6	ANTENNA CORD SUB-ASSEMBLY

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	FRONT NO. 1 SPEAKER ASSEMBLY RH	*2	MAP LIGHT ASSEMBLY - MANUAL (SOS) SWITCH
*3	TELEPHONE MICROPHONE ASSEMBLY	*4	TELEPHONE ANTENNA ASSEMBLY - GPS - SDARS - Telephone Main
*5	NO. 2 ANTENNA CORD SUB-ASSEMBLY	-	-
