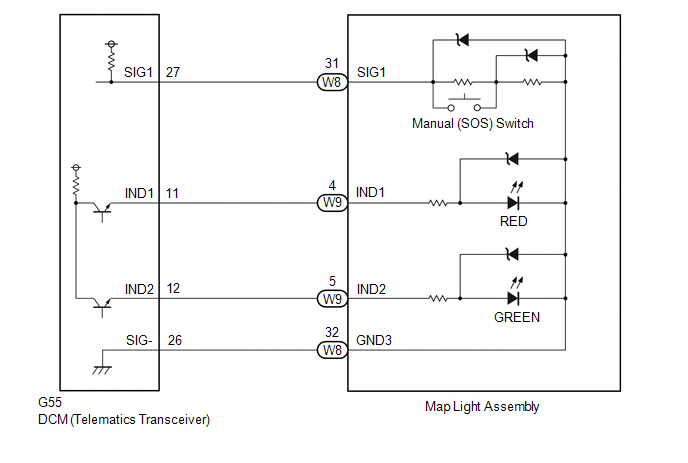

DTC B15C5: Manual Button Malfunction [06/2015 - 01/2018]: Wiring Diagram

GTY603344

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
