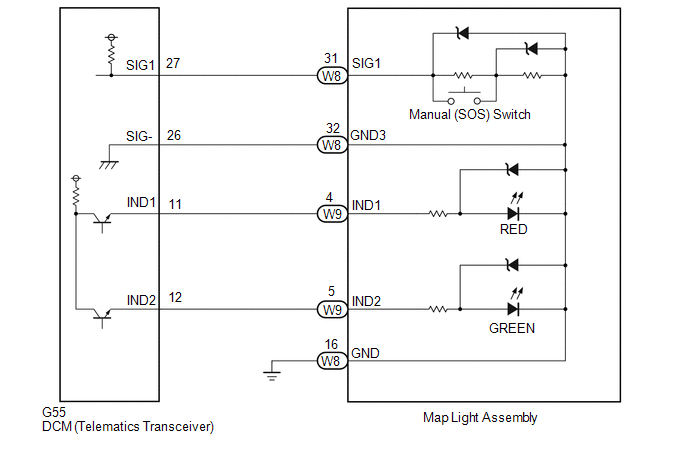

DTC B1571: Manual (SOS) Switch Green Indicator Malfunction [01/2018 - ]: Wiring Diagram

GTY927178

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
