Installation [11/2018 - ]: Procedure

1. When reusing the telephone antenna assembly:
   1. Install a new seal.

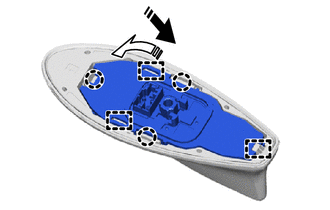

2. Engage the claws and guides to install the telephone antenna assembly from the antenna outer cover as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   	Install in this Direction (1)
   	Install in this Direction (2)

3. Install a new washer and holder with the bolt.

   Torque: 9.5 N*m (97 kgf*cm, 84 in.*lbf)

4. Connect the connector.

Refer to INSTALLATION [11/2018 - ]
