Removal [06/2015 - ]: Procedure

  1. REMOVE REAR PACKAGE TRAY TRIM PANEL ASSEMBLY

    Refer to REMOVAL [06/2015 - 01/2018] , or refer to REMOVAL [01/2018 - 11/2018] , or refer to REMOVAL [11/2018 - ]

  2. REMOVE REAR NO. 2 SPEAKER ASSEMBLY

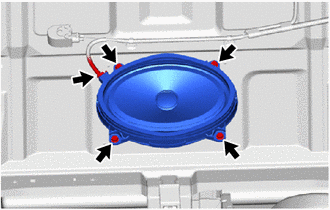

    1. Disconnect the connector.
      GTY580059Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 4 bolts and rear No. 2 speaker assembly.
      NOTE:

      Do not touch the speaker cone.
