Antenna Cord
>>
Components [11/2018 - ]
Components [11/2018 - ]

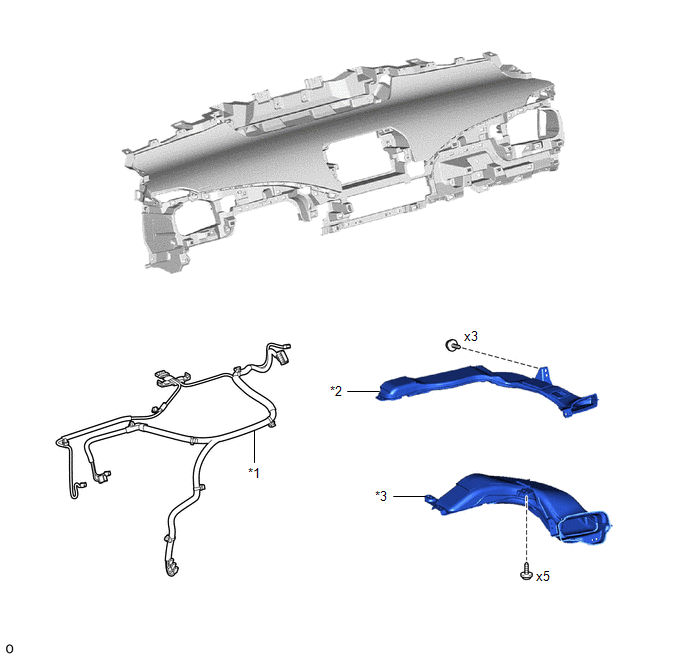

Fig 1: Antenna Cord Replacement Components [11/2018 - ] (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
ANTENNA CORD SUB-ASSEMBLY
*2
NO. 1 SIDE DEFROSTER NOZZLE DUCT
*3
NO. 3 HEATER TO REGISTER DUCT
-
-

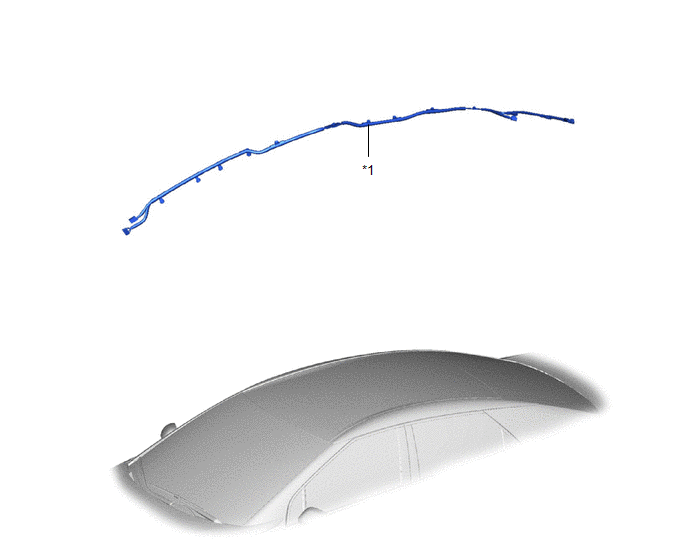

Fig 2: Antenna Cord Replacement Components [11/2018 - ] (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
NO. 2 ANTENNA CORD SUB-ASSEMBLY
-
-
