Parts Location [06/2015 - 01/2018]: Illustration
| *1 | OUTER MIRROR CONTROL ECU ASSEMBLY LH | *2 | OUTER MIRROR CONTROL ECU ASSEMBLY RH |
| *3 | SKID CONTROL ECU (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY) | *4 | HEADLIGHT LIGHT CONTROL ECU SUB-ASSEMBLY LH |
| *5 | FC CONTROL ECU | *6 | FC CONVERTER ASSEMBLY |
| *7 | LANE DEPARTURE WARNING CAMERA | - | - |
| *A | w/ Diagnosis Recorder ECU | - | - |
| *1 | STEERING SENSOR | *2 | COMBINATION METER ASSEMBLY |
| *3 | AIRBAG ECU ASSEMBLY | *4 | NAVIGATION RECEIVER ASSEMBLY |
| *5 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *6 | NETWORK GATEWAY ECU |
| *7 | AIR CONDITIONING AMPLIFIER ASSEMBLY | *8 | INTEGRATION CONTROL AND PANEL ASSEMBLY |
| *9 | CLEARANCE WARNING ECU ASSEMBLY | *10 | DIAGNOSIS RECORDER ECU |

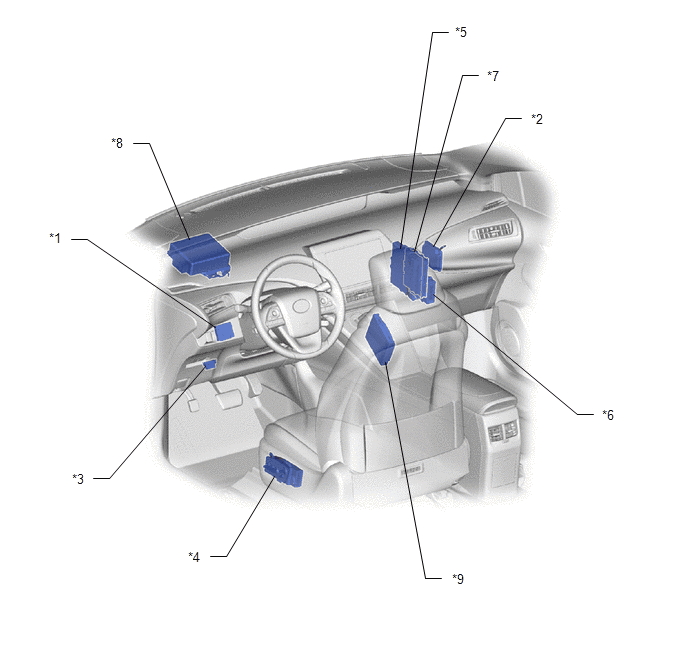

| *1 | MULTIPLEX TILT AND TELESCOPIC ECU | *2 | DRIVING SUPPORT ECU ASSEMBLY |
| *3 | DLC3 | *4 | POSITION CONTROL ECU AND SWITCH ASSEMBLY |
| *5 | EV CONTROL ECU | *6 | TRANSMISSION CONTROL ECU ASSEMBLY |
| *7 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) | *8 | POWER STEERING ECU ASSEMBLY |
| *9 | DCM (Telematics Transceiver) | - | - |
| *1 | NO. 1 CAN JUNCTION CONNECTOR | *2 | NO. 2 CAN JUNCTION CONNECTOR |
| *3 | NO. 3 CAN JUNCTION CONNECTOR | *4 | NO. 4 CAN JUNCTION CONNECTOR |
| *5 | NO. 5 CAN JUNCTION CONNECTOR | *6 | NO. 6 CAN JUNCTION CONNECTOR |
| *7 | NO. 7 CAN JUNCTION CONNECTOR | *8 | NO. 1 CAN JUNCTION TERMINAL |
| *9 | NO. 2 CAN JUNCTION TERMINAL | - | - |
| *1 | FC-IGCT RELAY | *2 | H-LP-MAIN LH RELAY |
| *3 | IG1 NO. 4 RELAY | *4 | ACC RELAY |
| *5 | IG1 NO. 2 RELAY | *6 | ECU-B NO. 1 FUSE |
| *7 | FC-IGCT FUSE | *8 | FDC FUSE |
| *9 | IG2 NO. 2 FUSE | *10 | A/C IG1 FUSE |
| *11 | PM-IGCT FUSE | *12 | RADIO NO. 2 FUSE |
| *13 | ABS-MAIN NO. 1 FUSE | *14 | ABS-MAIN NO. 2 FUSE |
| *15 | ABS MTR NO. 1 FUSE | *16 | ABS MTR NO. 2 FUSE |
| *17 | H-LP-MAIN- LH FUSE | *18 | ECU-IG1 NO. 1 FUSE |
| *19 | ECU-IG1 NO. 2 FUSE | *20 | ECU-IG1 NO. 3 FUSE |
| *21 | ECU-IG2 FUSE | *22 | ECU-ACC FUSE |
| *23 | ECU-B NO. 4 FUSE | *24 | A/C FUSE |
| *25 | AM2 FUSE | *26 | DOOR F/R FUSE |
| *27 | DOOR F/L FUSE | *28 | P/SEAT F/R FUSE |
| *29 | TI&TE FUSE | *30 | EPS-IG FUSE |
| *31 | METER-IG2 FUSE | *32 | A/BAG-IG2 FUSE |
| *33 | NO. 1 MOTOR COMPARTMENT ROOM RELAY BLOCK | *34 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY |
