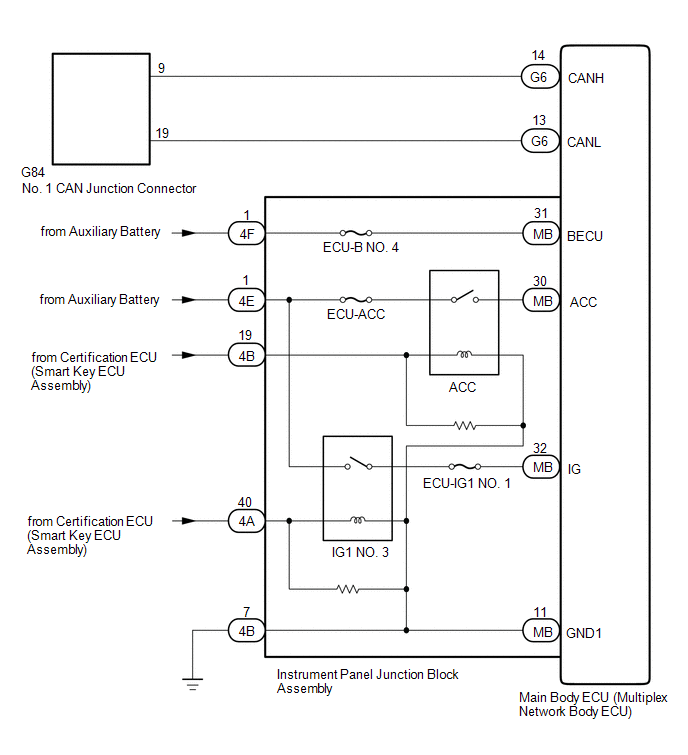

Main Body ECU Communication Stop Mode [11/2018 - ]: Wiring Diagram

GTY874485

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
