DTC U0293: EV ECU Communication [06/2015 - 11/2018]: Procedure
- RECONFIRM DTC OUTPUT
Body Electrical > Gateway > Trouble Codes
- Reconfirm DTCs.
HINT:
If DTC U1002 is output from Gateway of the network gateway ECU, this indicates a sub bus 2 malfunction. Troubleshoot for DTC U1002 and check for malfunctions in sub bus 2.
Result
Result Proceed to U1002 is not output from network gateway ECU (Techstream display: Gateway) A U1002 is output from network gateway ECU (Techstream display: Gateway) B
Result:
B
GO TO DIAGNOSIS PROCEDURE INDICATED BY OUTPUT DTC. Refer to DTC U1002: Lost Communication with Gateway Module (Network Gateway ECU) [06/2015 - 11/2018]
Result:
A
See step 2
- Reconfirm DTCs.
- CHECK FOR OPEN IN SUB BUS 2 LINES (EV CONTROL ECU BRANCH LINE)
- Disconnect the cable from the negative (-) auxiliary battery terminal.
- Disconnect the EV control ECU connector.
- Measure the resistance according to the value(s) in the table below.
*a Front view of wire harness connector
(to EV Control ECU)Standard Resistance
Tester Connection Condition Specified Condition G45-34 (CA2H) - G45-35 (CA2L) Cable disconnected from negative (-) auxiliary battery terminal 54 to 69 Ω Result
Result OK NG
Result:
NG
REPAIR OR REPLACE CAN BRANCH LINE OR CONNECTOR (EV CONTROL ECU)
Result:
OK
See step 3
- CHECK HARNESS AND CONNECTOR (POWER SOURCE TERMINAL)
- Disconnect the EV control ECU connector.
- Measure the resistance according to the value(s) in the table below.

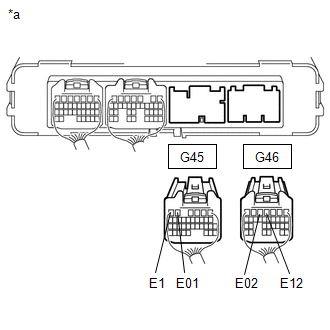

*a Front view of wire harness connector
(to EV Control ECU)Standard Resistance
Tester Connection Condition Specified Condition G45-5 (E01) - Body ground Cable disconnected from negative (-) auxiliary battery terminal Below 1 Ω G45-6 (E1) - Body ground Cable disconnected from negative (-) auxiliary battery terminal Below 1 Ω G46-4 (E12) - Body ground Cable disconnected from negative (-) auxiliary battery terminal Below 1 Ω G46-5 (E02) - Body ground Cable disconnected from negative (-) auxiliary battery terminal Below 1 Ω - Reconnect the EV control ECU connector.
- Reconnect the cable to the negative (-) auxiliary battery terminal.
- Measure the voltage according to the value(s) in the table below.
*a Component with harness connected
(EV Control ECU)Standard Voltage
Tester Connection Switch Condition Specified Condition A28-1 (+B2) - Body ground Power switch on (IG) 11 to 14 V A27-4 (+B1) - Body ground Power switch on (IG) 11 to 14 V A28-3 (IG2) - Body ground Power switch on (IG) 11 to 14 V Result
Result OK NG
Result:
OK
REPLACE EV CONTROL ECU. Refer to REMOVAL [06/2015 - 11/2018]
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR (POWER SOURCE CIRCUIT)
