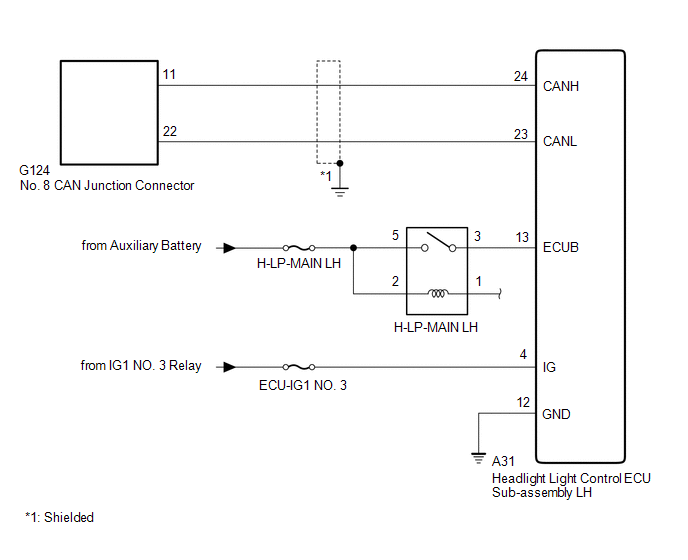

DTC U0182: Lost Communication with AFS ECU [11/2018 - ]: Wiring Diagram

GTY851091

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
