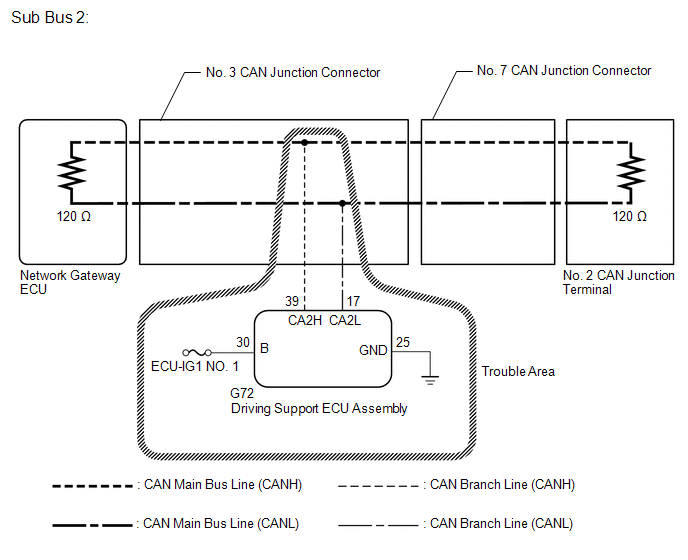

DTC U0104: Lost Communication with Driving Support ECU [06/2015 - 11/2018]: Wiring Diagram

GTY596886

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
