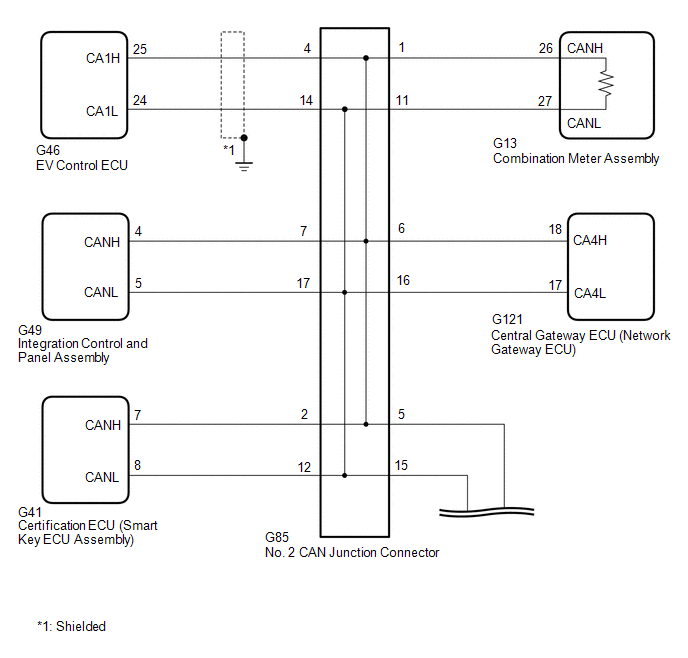

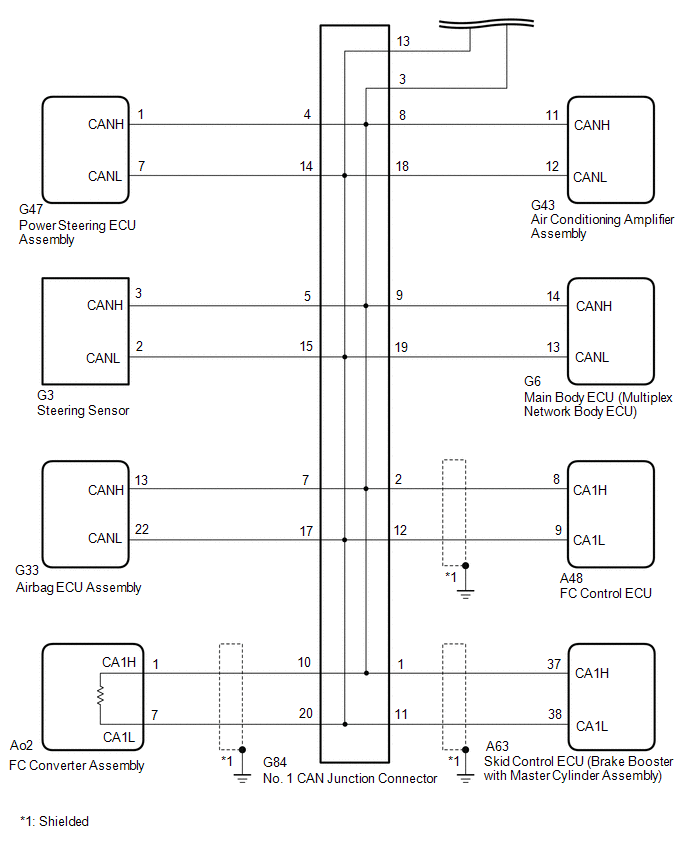

Check Bus 2 Line for Short to +B [11/2018 - ]: Wiring Diagram

GTY943532

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

GTY944729

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
