Parts Location [11/2018 - ]: Illustration

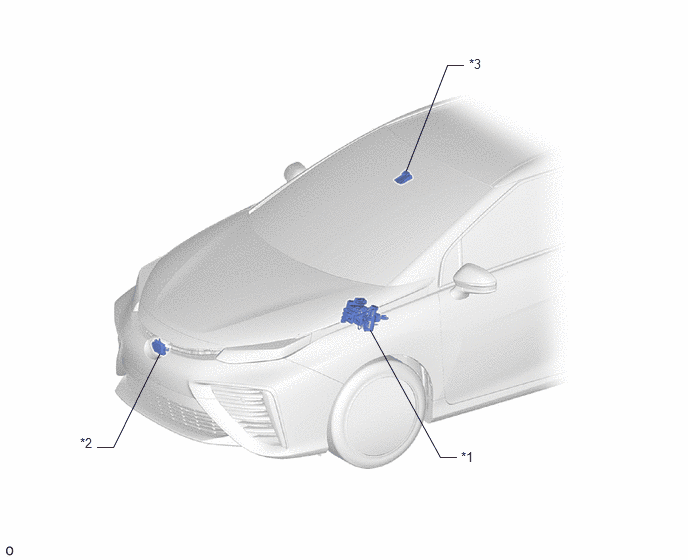

GTY889831Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY
- SKID CONTROL ECU		 *2 MILLIMETER WAVE RADAR SENSOR ASSEMBLY
*3 FORWARD RECOGNITION CAMERA - -

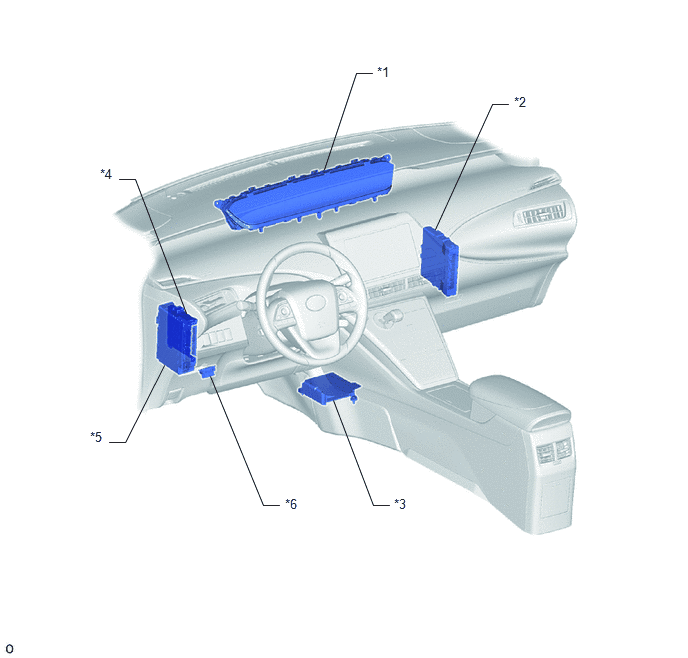

GTY864806Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 COMBINATION METER ASSEMBLY *2 EV CONTROL ECU
*3 AIRBAG ECU ASSEMBLY
- YAW RATE SENSOR		 *4 MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)
*5 INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY
- ECU-IG1 NO. 2 FUSE		 *6 DLC3
