ULTRASONIC SENSOR (for Rear Side)
>>
Components [06/2015 - 11/2018]
Components [06/2015 - 11/2018]

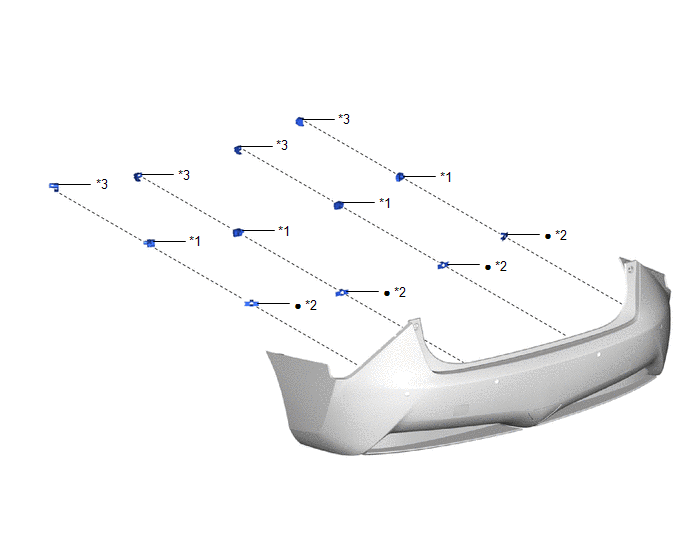

Fig 1: Ultrasonic Sensor (For Rear Side) Replacement Components [06/2015 - 11/2018]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
NO. 2 ULTRASONIC SENSOR
*2
NO. 2 ULTRASONIC SENSOR RETAINER
*3
ULTRASONIC SENSOR CLIP
-
-
•
Non-reusable part
-
-
