Removal [06/2015 - ]: Procedure

  1. REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY

    Refer to REMOVAL [06/2015 - 01/2018] , or refer to REMOVAL [01/2018 - 11/2018] , or refer to REMOVAL [11/2018 - ]

  2. REMOVE REAR CROSS TRAFFIC ALERT BUZZER

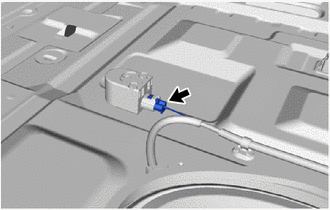

    1. Disconnect the connector.
      GTY600490Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

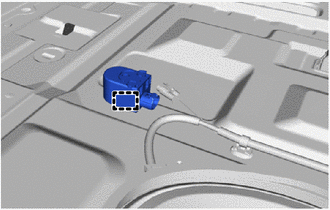

    2. Disengage the clamp to remove the rear cross traffic alert buzzer.
      GTY551978Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
