Removal [06/2015 - ]: Procedure

  1. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL

    Refer to REMOVAL [06/2015 - ]

  2. REMOVE NO. 1 CLEARANCE WARNING BUZZER

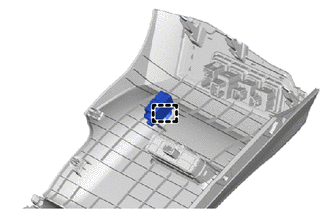

    1. Disengage the clamp to remove the No. 1 clearance warning buzzer.
      GTY588198Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
