Operation Check [11/2018 - ]

  1. SELF-DIAGNOSIS SYSTEM
    1. When a malfunction occurs in the intuitive parking assist system or the system cannot be used, a warning is displayed on the multi-information display (on the combination meter assembly) and the meter buzzer sounds to inform the driver that the system is unavailable.
      Warning Item Multi-information Display (on the Combination Meter Assembly) Indicator/Meter Buzzer Condition
      Intuitive parking assist system malfunction Parking Assist Malfunction Visit Your Dealer
      • Clearance sonar OFF
      • Meter buzzer: Sounds
      Ultrasonic sensor dirty, frozen or open circuit Parking Assist Unavailable Clean Parking Assist Sensor
      • Clearance sonar OFF
      • Meter buzzer: Sounds
      Ultrasonic sensor communication malfunction Parking Assist Unavailable
      • Clearance sonar OFF
      • Meter buzzer: Sounds
  2. DETECTION RANGE MEASUREMENT AND DISPLAY INSPECTION
    NOTE:

    The following measurement and inspection will be performed with the shift lever in a position other than P. Be sure to apply the parking lever and depress the brake pedal firmly to prevent the vehicle from moving.

    1. Turn the power switch on (IG).
    2. Turn the combination switch assembly (clearance sonar main switch) on.
    3. Detection range measurement:
      1. Move the shift lever according to the table below.
        Measurement Area Shift Lever Position
        Front Corner Sensor (front corner ultrasonic sensor) In any position other than P
        Front Center Sensor (front center ultrasonic sensor) In any position other than P or R
        Rear Corner Sensor (rear corner ultrasonic sensor) R
        Rear Center Sensor (rear center ultrasonic sensor)
      2. Move a 60 mm (2.4 in.) diameter pole near each sensor to measure its detection range. When measuring the Longest-range detection of the front center sensor and the rear center sensor, use a wall or equivalent.
        NOTE:

        These detection ranges are applicable when positioning the 60 mm (2.4 in.) diameter pole parallel or perpendicular to the ground. The detection range varies depending on the measuring method and type of obstacle (such as walls).

        HINT:

        Have an assistant move the pole.

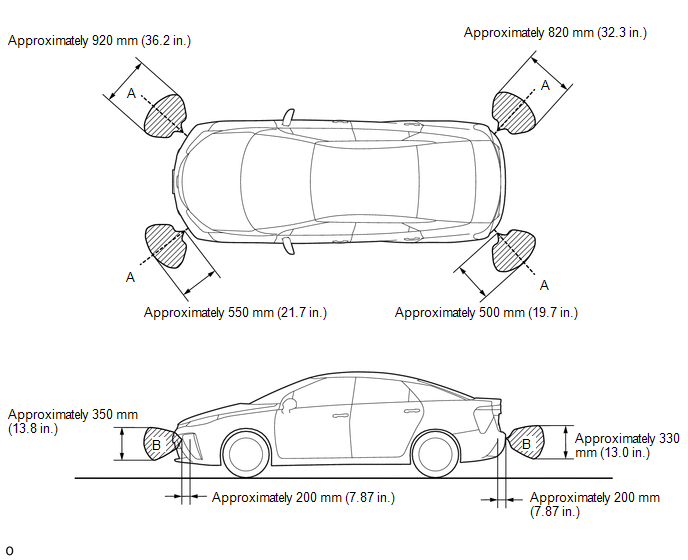

        Corner Sensor Detection Range

        GTY894487Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

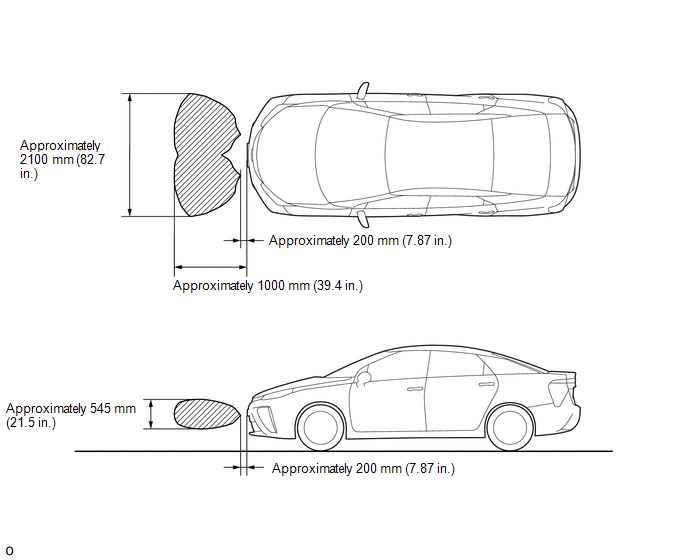

        Front Center Sensor Detection Range

        GTY916700Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        NOTE:

        The front corner ultrasonic sensor side view detection range (hatched area labeled (B)) represents the cross section of the top view detection range (A). The hatched area (B) does not represent the entire side view detection range.

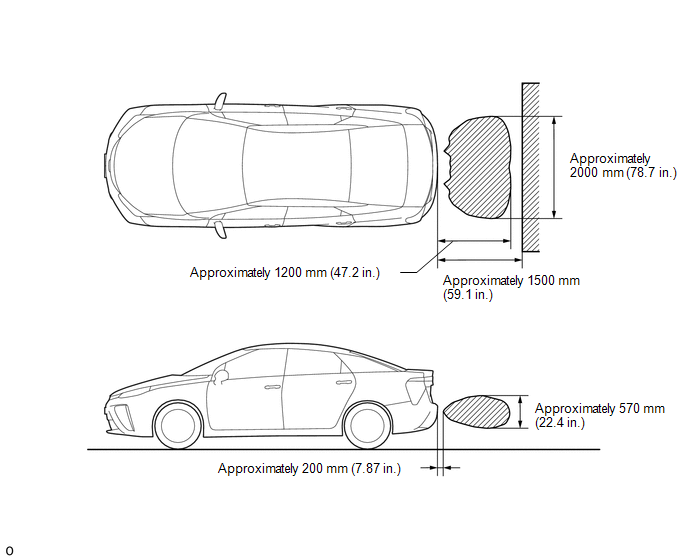

        Rear Center Sensor Detection Range

        GTY844430Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Front corner sensor display and buzzer operation check
      1. When the front corner sensors (front corner ultrasonic sensor) have detected an obstacle, check the displays and check that the buzzer sounds.
        OPERATION CONDITION

        Power switch Intuitive parking assist system Shift Lever Position Vehicle Speed
        On (IG) On In any position other than P Less than approximately 10 km/h (6 mph) if speed is decreasing
        On (IG) On R -
        GTY839647Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Close-range *b Medium-range
        *c Long-range - -
        GTY872046Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        Standard

        MULTI-INFORMATION DISPLAY

        Detection Range During Judgment Obstacle
        *a: Close-range detection
        Within approximately 350 +/- 40 mm (13.8 +/- 1.57 in.)        		 Buzzer: Sounds continuously
        Number of bars displayed: 1 (blinking)        		 60 mm (2.4 in.) diameter pole
        *b: Medium-range detection
        From approximately 350 +/- 40 to 450 +/- 50 mm (13.8 +/- 1.57 to 17.7 +/- 1.97 in.)        		 Buzzer: Sounds intermittently (ON: 0.1 seconds / OFF: 0.1 seconds)
        Number of bars displayed: 2 (illuminated)        		 60 mm (2.4 in.) diameter pole
        *c: Long-range detection
        From approximately 450 +/- 50 to 600 +/- 60 mm (17.7 +/- 1.97 to 23.6 +/- 2.36 in.)        		 Buzzer: Sounds intermittently (ON: 0.2 seconds / OFF: 0.2 seconds)
        Number of bars displayed: 3 (illuminated)        		 60 mm (2.4 in.) diameter pole

        HINT:

        Ultrasonic waves are used to measure the detection range; however, the detection range may vary depending on the ambient temperature.

    5. Front center sensor display and buzzer operation check
      1. When the front center sensors (front center ultrasonic sensor) have detected an obstacle, check the displays and check that the buzzer sounds.
        OPERATION CONDITION

        Power switch Intuitive parking assist system Shift Lever Position Vehicle Speed
        On (IG) On In any position other than P or R Less than approximately 10 km/h (6 mph) if speed is decreasing
        GTY842902Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Close-range *b Medium-range
        *c Long-range *d Longest-Range
        GTY874125Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        Standard

        MULTI-INFORMATION DISPLAY

        Detection Range During Judgment Obstacle
        *a: Close-range detection
        Within approximately 350 +/- 40 mm (13.8 +/- 1.57 in.)        		 Buzzer: Sounds continuously
        Number of bars displayed: 1 (blinking)        		 60 mm (2.4 in.) diameter pole
        *b: Medium-range detection
        From approximately 350 +/- 40 to 450 +/- 50 mm (13.8 +/- 1.57 to 17.7 +/- 1.97 in.)        		 Buzzer: Sounds intermittently (ON: 0.1 seconds / OFF: 0.1 seconds)
        Number of bars displayed: 2 (illuminated)        		 60 mm (2.4 in.) diameter pole
        *c: Long-range detection
        From approximately 450 +/- 50 to 600 +/- 60 mm (17.7 +/- 1.97 to 23.6 +/- 2.36 in.)        		 Buzzer: Sounds intermittently (ON: 0.2 seconds / OFF: 0.2 seconds)
        Number of bars displayed: 3 (illuminated)        		 60 mm (2.4 in.) diameter pole
        *d: Longest-range detection
        From approximately 600 +/- 60 to 1000 +/- 100 mm (23.6 +/- 2.36 to 39.4 +/- 3.94 in.)        		 Buzzer: Sounds intermittently (ON: 0.2 seconds / OFF: 0.5 seconds)
        Number of bars displayed: 4 (illuminated)        		 wall

        HINT:

        Ultrasonic waves are used to measure the detection range; however, the detection range may vary depending on the ambient temperature.

    6. Rear corner sensor display and buzzer operation check
      1. When the rear corner sensors (rear corner ultrasonic sensor) have detected an obstacle, check the display and check that the buzzer sounds.
        OPERATION CONDITION

        Power switch Intuitive parking assist system Shift Lever Position Vehicle Speed
        On (IG) On R -
        GTY860200Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Close-range *b Medium-range
        *c Long-range - -
        GTY872045Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        Standard

        MULTI-INFORMATION DISPLAY

        Detection Range During Judgment Obstacle
        *a: Close-range detection
        Within approximately 350 +/- 40 mm (13.8 +/- 1.57 in.)        		 Buzzer: Sounds continuously
        Number of bars displayed: 1 (blinking)        		 60 mm (2.4 in.) diameter pole
        *b: Medium-range detection
        From approximately 350 +/- 40 to 450 +/- 50 mm (13.8 +/- 1.57 to 17.7 +/- 1.97 in.)        		 Buzzer: Sounds intermittently (ON: 0.1 seconds / OFF: 0.1 seconds)
        Number of bars displayed: 2 (illuminated)        		 60 mm (2.4 in.) diameter pole
        *c: Long-range detection
        From approximately 450 +/- 50 to 600 +/- 60 mm (17.7 +/- 1.97 to 23.6 +/- 2.36 in.)        		 Buzzer: Sounds intermittently (ON: 0.2 seconds / OFF: 0.2 seconds)
        Number of bars displayed: 3 (illuminated)        		 60 mm (2.4 in.) diameter pole

        HINT:

        Ultrasonic waves are used to measure the detection range; however, the detection range may vary depending on the ambient temperature.

    7. Rear center sensor display and buzzer operation check
      1. When the rear center sensors (rear center ultrasonic sensor) have detected an obstacle, check the display and check that the buzzer sounds.
        OPERATION CONDITION

        Power switch Clearance Sonar Main Switch Shift Lever Position Vehicle Speed
        On (IG) On R Less than approximately 10 km/h (6 mph)
        GTY852749Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Close-range *b Medium-range
        *c Long-range *d Longest-Range
        GTY934082Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        Standard

        MULTI-INFORMATION DISPLAY

        Detection Range During Detection Obstacle
        *a: Close-range detection
        Within approximately 350 +/- 40 mm (13.8 +/- 1.57 in.)        		 Buzzer: Sounds continuously
        Number of bars displayed: 1 (blinking)        		 60 mm (2.4 in.) diameter pole
        *b: Medium-range detection
        From approximately 350 +/- 40 to 450 +/- 50 mm (13.8 +/- 1.57 to 17.7 +/- 1.97 in.)        		 Buzzer: Sounds intermittently (ON: 0.1 seconds / OFF: 0.1 seconds)
        Number of bars displayed: 2 (illuminated)        		 60 mm (2.4 in.) diameter pole
        *c: Long-range detection
        From approximately 450 +/- 50 to 600 +/- 60 mm (17.7 +/- 1.97 to 23.6 +/- 2.36 in.)        		 Buzzer: Sounds intermittently (ON: 0.2 seconds / OFF: 0.2 seconds)
        Number of bars displayed: 3 (illuminated)        		 60 mm (2.4 in.) diameter pole
        *d: Longest-range detection
        From approximately 600 +/- 60 to 1500 +/- 150 mm (23.6 +/- 2.36 to 59.1 +/- 5.9 in.)        		 Buzzer: Sounds intermittently (ON: 0.2 seconds / OFF: 0.5 seconds)
        Number of bars displayed: 4 (illuminated)        		 Wall

        HINT:

        Ultrasonic waves are used to measure the detection range; however, the detection range may vary depending on the ambient temperature.
