Parts Location [06/2015 - ]: Illustration

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

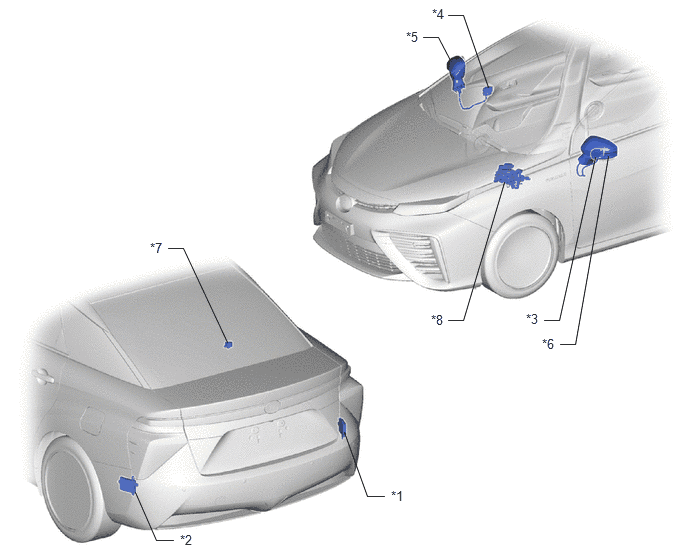

*1	BLIND SPOT MONITOR SENSOR RH (MASTER)	*2	BLIND SPOT MONITOR SENSOR LH (SLAVE)
*3	OUTER MIRROR CONTROL ECU ASSEMBLY LH	*4	OUTER MIRROR CONTROL ECU ASSEMBLY RH
*5	OUTER REAR VIEW MIRROR ASSEMBLY RH - OUTER REAR VIEW MIRROR RH	*6	OUTER REAR VIEW MIRROR ASSEMBLY LH - OUTER REAR VIEW MIRROR LH
*7	REAR CROSS TRAFFIC ALERT BUZZER (BLIND SPOT MONITOR BUZZER)	*8	SKID CONTROL ECU (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY)

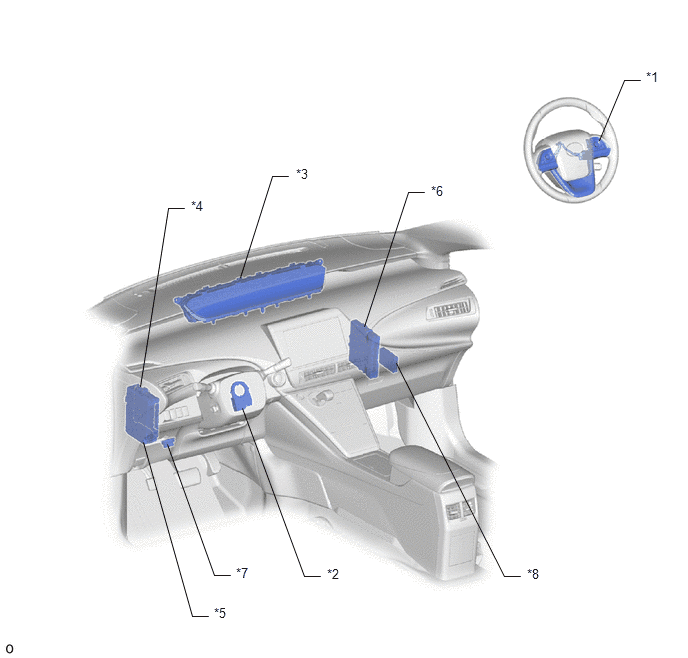

*1	STEERING PAD SWITCH ASSEMBLY	*2	STEERING SENSOR
*3	COMBINATION METER ASSEMBLY	*4	MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)
*5	INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-IG1 NO. 1 FUSE	*6	EV CONTROL ECU
*7	DLC3	*8	NETWORK GATEWAY COMPUTER
