Reassembly [11/2016 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. INSTALL FRONT DIFFERENTIAL CASE FRONT TAPERED ROLLER BEARING (INNER RACE)
    1. Using SST and a press, install a new front differential case front tapered roller bearing (inner race) to the differential case assembly.
      GTY709548Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09316-20011
      • SST: 09387-00020
      NOTE:
      • Do not damage the front differential case front tapered roller bearing (inner race) cage when installing the front differential case front tapered roller bearing (inner race).
      • Be sure to install the front differential case front tapered roller bearing (inner race) so that there is no clearance between the front differential case front tapered roller bearing (inner race) and the differential case assembly. If there is any clearance, the turning torque of the differential case assembly cannot be measured correctly.
  2. INSTALL FRONT DIFFERENTIAL CASE FRONT TAPERED ROLLER BEARING (OUTER RACE)
    1. Using SST and a hammer, install the differential drive pinion shim and a new front differential case front tapered roller bearing (outer race) to the transaxle housing.
      • SST: 09950-60020
        1. 09951-00890
      • SST: 09950-70010
        1. 09951-07200
      NOTE:

      Be sure to install the front differential case front tapered roller bearing (outer race) so that there is no clearance between the front differential case front tapered roller bearing (outer race), differential drive pinion shim and the transaxle housing. If there is any clearance, the turning torque of the differential case assembly cannot be measured correctly.

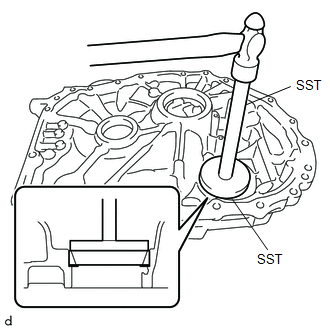

      GTY687505Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL FRONT DIFFERENTIAL CASE REAR TAPERED ROLLER BEARING (INNER RACE)
    1. Using SST and a press, install a new front differential case rear tapered roller bearing (inner race) to the differential case assembly.
      GTY697573Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09316-20011
      • SST: 09950-60020
        1. 09951-00890
      • SST: 09950-70010
        1. 09951-07200
      NOTE:
      • Do not damage the front differential case rear tapered roller bearing (inner race) cage when installing the front differential case rear tapered roller bearing (inner race).
      • Be sure to install the front differential case rear tapered roller bearing (inner race) so that there is no clearance between the front differential case rear tapered roller bearing (inner race) and the differential case assembly. If there is any clearance, the turning torque of the differential case assembly cannot be measured correctly.
  4. INSTALL FRONT DIFFERENTIAL CASE REAR TAPERED ROLLER BEARING (OUTER RACE)
    1. Using SST and a hammer, install a new front differential case rear tapered roller bearing (outer race) to the automatic transaxle case sub-assembly.
      GTY726435Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09951-00850
      • SST: 09950-70010
        1. 09951-07200
      NOTE:

      Be sure to install the front differential case rear tapered roller bearing (outer race) so that there is no clearance between the front differential case rear tapered roller bearing (outer race) and the automatic transaxle case sub-assembly. If there is any clearance, the turning torque of the differential case assembly cannot be measured correctly.

  5. INSTALL FRONT DRIVE SHAFT OIL SEAL RH
    1. Hold the differential case assembly in a vise between aluminum plates.
    2. Using SST and a hammer, install a new front drive shaft oil seal RH to the differential case assembly.

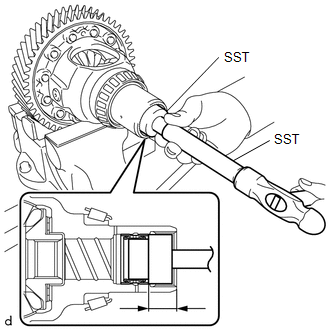

      GTY710298Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09950-60010
        1. 09951-00400
        2. 09951-00330
        3. 09952-06010
      • SST: 09950-70010
        1. 09951-07200

      Standard Depth

      21.5 to 22.5 mm (0.846 to 0.886 in.)

      NOTE:

      Be careful not to damage the front drive shaft oil seal RH.

    3. Apply MP grease to the lip of the front drive shaft oil seal RH.
