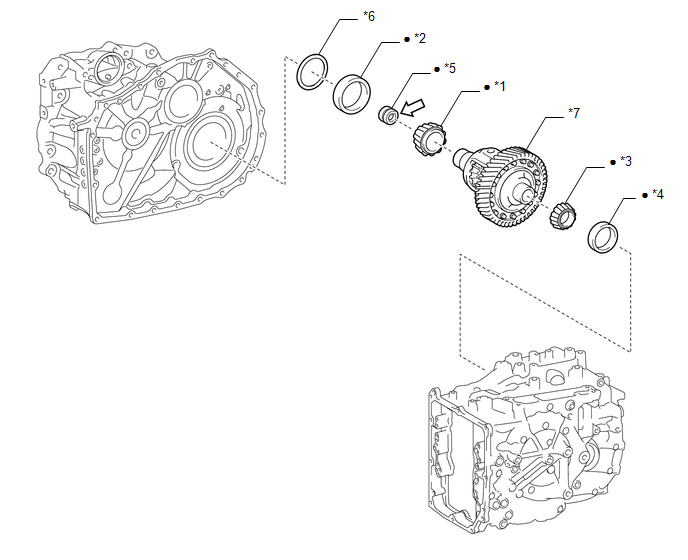

Components [11/2016 - ]: Illustration
WARNING: This page is about a different variant/trim than selected.
| *1 | FRONT DIFFERENTIAL CASE FRONT TAPERED ROLLER BEARING (INNER RACE) | *2 | FRONT DIFFERENTIAL CASE FRONT TAPERED ROLLER BEARING (OUTER RACE) |
| *3 | FRONT DIFFERENTIAL CASE REAR TAPERED ROLLER BEARING (INNER RACE) | *4 | FRONT DIFFERENTIAL CASE REAR TAPERED ROLLER BEARING (OUTER RACE) |
| *5 | FRONT DRIVE SHAFT OIL SEAL RH | *6 | DIFFERENTIAL DRIVE PINION SHIM |
| *7 | DIFFERENTIAL CASE ASSEMBLY | - | - |
| • | Non-reusable part | MP grease |
