Section 4 (SFI System [1AR-FE] - Diagnostics - Introduction - (Except Hybrid))
>>
SFI System
>>
System Diagram [11/2016 - ]
>>
System Diagram [11/2016 - ]
System Diagram [11/2016 - ]
WARNING:
This page is about a different variant/trim than selected.

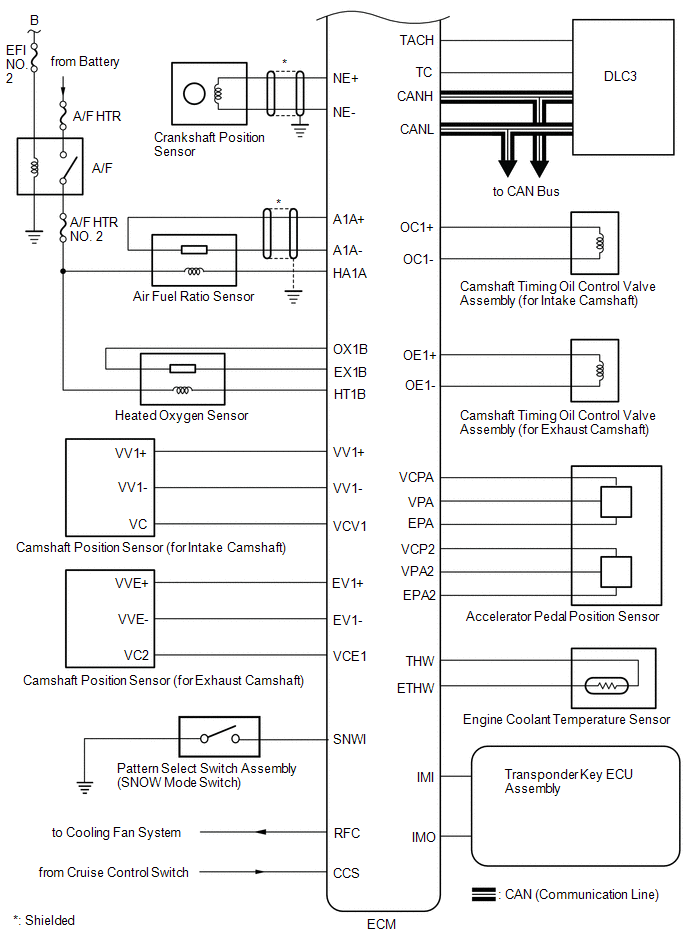

Fig 1: SFI System Wiring Diagram (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

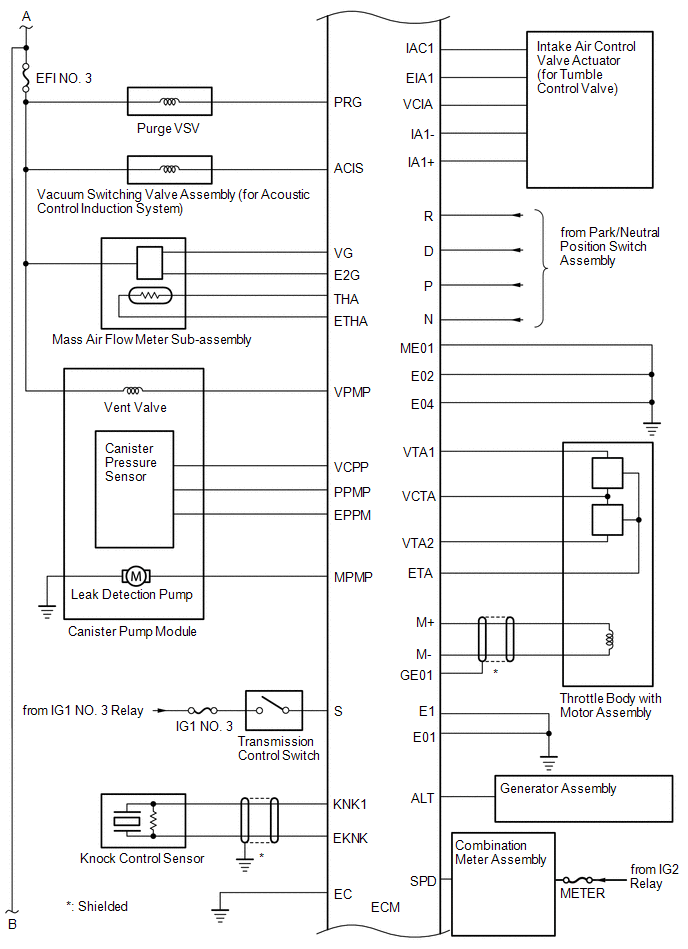

Fig 2: SFI System Wiring Diagram (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

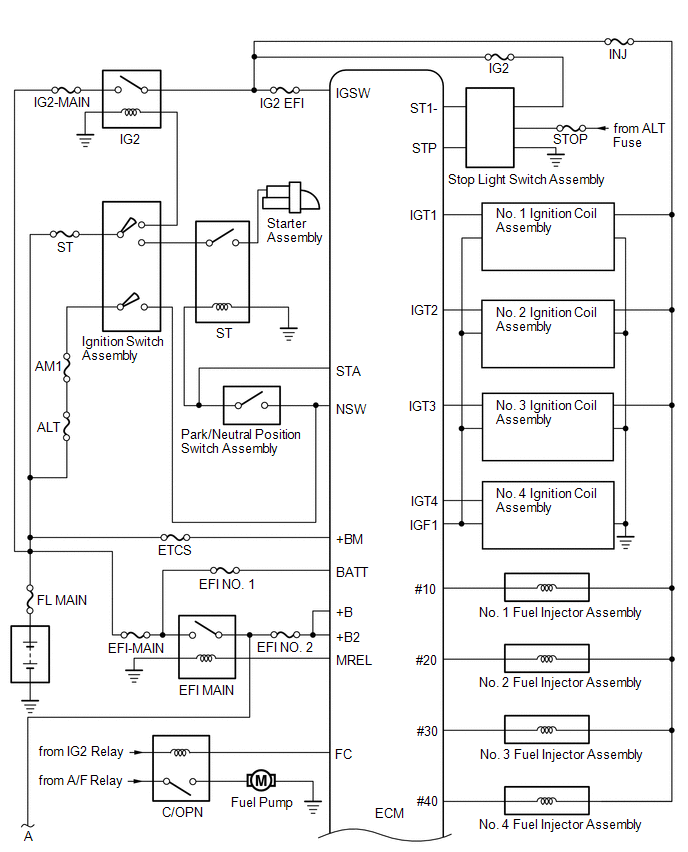

Fig 3: SFI System Wiring Diagram (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
