Components [12/2013 - ]: Illustration

WARNING: This page is about a different variant/trim than selected.

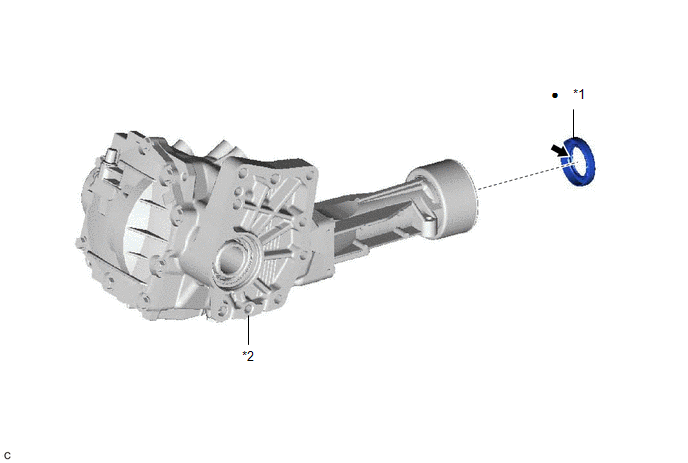

Fig 1: Transfer Case Rear Oil Seal Replacement Components
GTY455604Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 TRANSFER EXTENSION HOUSING TYPE T OIL SEAL *2 TRANSFER ASSEMBLY
• Non-reusable part MP grease
