Components [12/2013 - 11/2016]: Illustration

WARNING: This page is about a different variant/trim than selected.

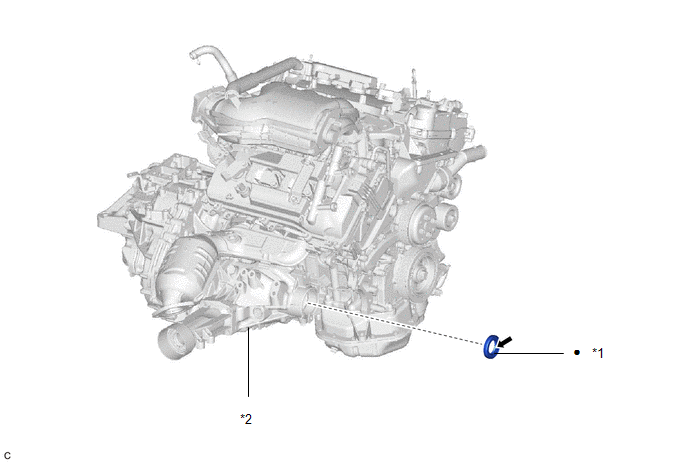

Fig 1: Transfer Case Front Oil Seal (For RH Side) Replacement Components
GTY441240Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 TRANSFER CASE OIL SEAL RH *2 TRANSFER ASSEMBLY
• Non-reusable part MP grease
