Section 23 (SFI System [1AR-FE] - Diagnostics & Circuit Tests - (Except Hybrid))
>>
SFI System
>>
Circuit Tests
>>
Fuel Pump Control Circuit [12/2013 - 11/2016]
>>
Wiring Diagram

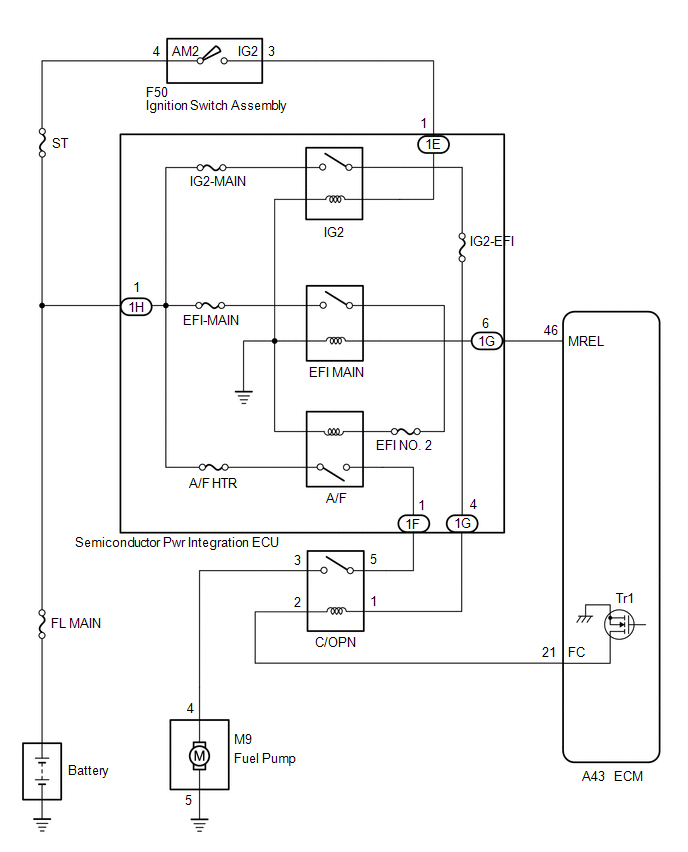

Fuel Pump Control Circuit [12/2013 - 11/2016]: Wiring Diagram
