Components [12/2013 - ]: Illustration

WARNING: This page is about a different variant/trim than selected.

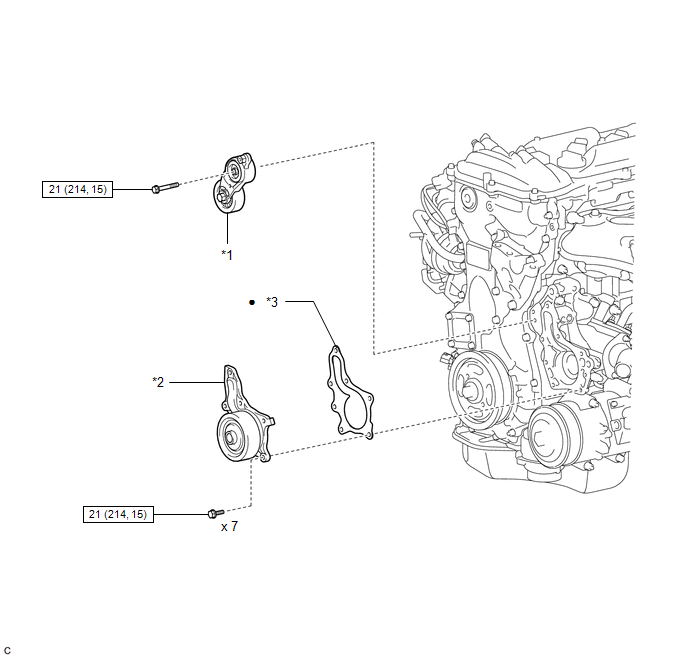

Fig 1: Water Pump Replacement Components With Torque Specifications
GTY434023Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 V-RIBBED BELT TENSIONER ASSEMBLY *2 ENGINE WATER PUMP ASSEMBLY
*3 WATER PUMP GASKET - -
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
