Removal [12/2013 - 11/2016]: Procedure

WARNING: This page is about a different car, the 2016 Toyota Highlander, 2015 Toyota Highlander, and 2014 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 25

  2. DRAIN ENGINE COOLANT

    See step  2

  3. REMOVE V-RIBBED BELT

    Refer to REMOVAL [12/2013 - 11/2016]

  4. REMOVE NO. 2 IDLER PULLEY SUB-ASSEMBLY

    Refer to PROCEDURE - Step 18

  5. DISCONNECT NO. 2 RADIATOR HOSE

    Refer to PROCEDURE - Step 39

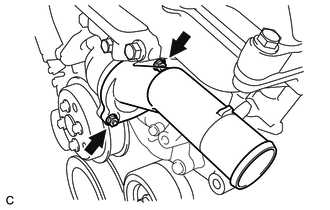

  6. REMOVE WATER INLET
    1. Remove the 2 nuts and water inlet.
      GTY307938Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE THERMOSTAT
    1. Remove the thermostat from the water inlet housing.
    2. Remove the gasket from the thermostat.
