Removal [12/2013 - 11/2016]: Procedure

WARNING: This page is about a different car, the 2016 Toyota Highlander, 2015 Toyota Highlander, and 2014 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 25

  2. REMOVE NO. 1 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 8

  3. DRAIN ENGINE COOLANT

    See step  2

  4. REMOVE RADIATOR GRILLE

    Refer to REMOVAL [12/2013 - 11/2016]

  5. REMOVE INLET AIR CLEANER ASSEMBLY

    Refer to PROCEDURE - Step 26

  6. REMOVE BATTERY

    Refer to PROCEDURE - Step 30

  7. REMOVE MILLIMETER WAVE RADAR SENSOR ASSEMBLY (w/ Dynamic Radar Cruise Control System)

    Refer to REMOVAL [12/2013 - 11/2016]

  8. REMOVE HOOD LOCK ASSEMBLY

    Refer to PROCEDURE - Step 12

  9. REMOVE UPPER RADIATOR SUPPORT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 7

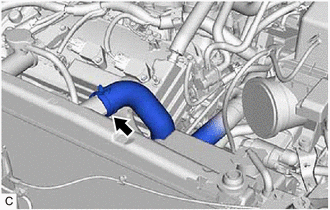

  10. DISCONNECT NO. 1 RADIATOR HOSE
    1. Slide the clip and disconnect the No. 1 radiator hose.
      GTY443811Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. DISCONNECT RADIATOR RESERVE TANK HOSE
    1. Disconnect the radiator reserve tank hose.
      GTY443809Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

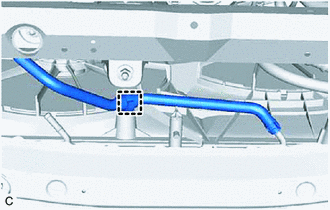

  12. DISCONNECT INLET NO. 1 OIL COOLER HOSE
    1. Disengage the clamp to disconnect the inlet No. 1 oil cooler hose from the fan shroud.
      GTY444187Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE FAN SHROUD ASSEMBLY
    1. Disconnect the cooling fan ECU connector.
      GTY443802Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 4 wire harness clamps.
    3. Disengage the 3 claws.
      GTY443401Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disengage the 3 guides to remove the fan shroud assembly from the radiator assembly.
      NOTE:

      Do not damage the radiator assembly when removing the fan shroud assembly.

  14. REMOVE FAN
    1. Remove the nut and fan.
      GTY443803Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE NO. 2 FAN
    1. Remove the nut and No. 2 fan.
      GTY454728Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE COOLING FAN MOTOR

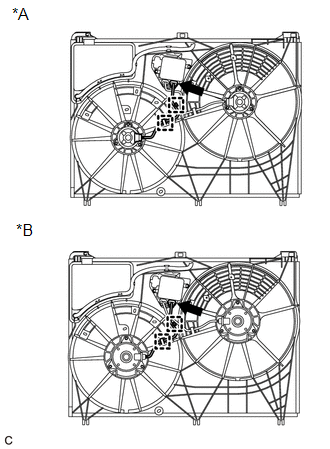

    1. Disconnect the cooling fan motor connector and disengage the wire harness from the 2 clamps.
      GTY441791Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A for 100 W Type
      *B for 200 W Type

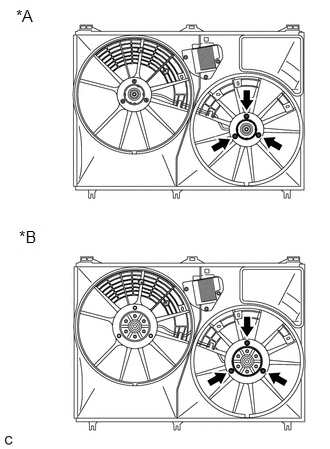

    2. Remove the 3 screws and cooling fan motor.
      GTY437264Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A for 100 W Type
      *B for 200 W Type
  17. REMOVE NO. 2 COOLING FAN MOTOR
    1. Disconnect the No. 2 cooling fan motor connector and disengage the wire harness from the 2 clamps. (for 100 W Type)
      GTY454729Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the No. 2 cooling fan motor connector and disengage the wire harness from the clamp. (for 200 W Type)
      GTY443806Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

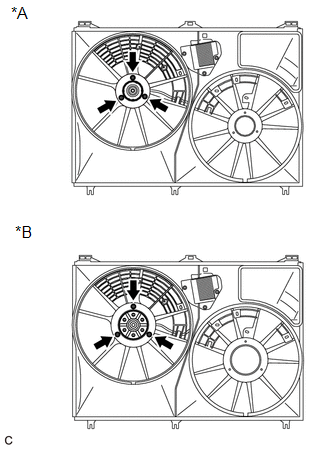

    3. Remove the 3 screws and No. 2 cooling fan motor.
      GTY434695Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A for 100 W Type
      *B for 200 W Type
