On-Vehicle Inspection [12/2013 - ]: Procedure

  1. INSPECT FRONT LOWER BALL JOINT ASSEMBLY
    1. Check for looseness.

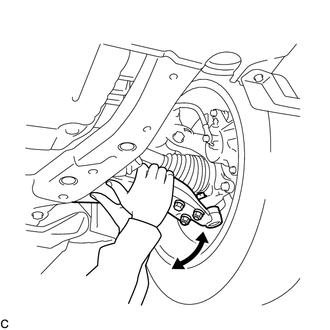

      GTY371658Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Lift up the vehicle.
      2. Move the front lower No. 1 suspension arm sub-assembly up and down by hand (294 N (30 kgf, 66.1 lbf) or more) to check that there is no looseness at the front lower ball joint assembly.
