DTC B1497: Communication Malfunction (Bus Ic) [12/2013 - 11/2016]: Wiring Diagram

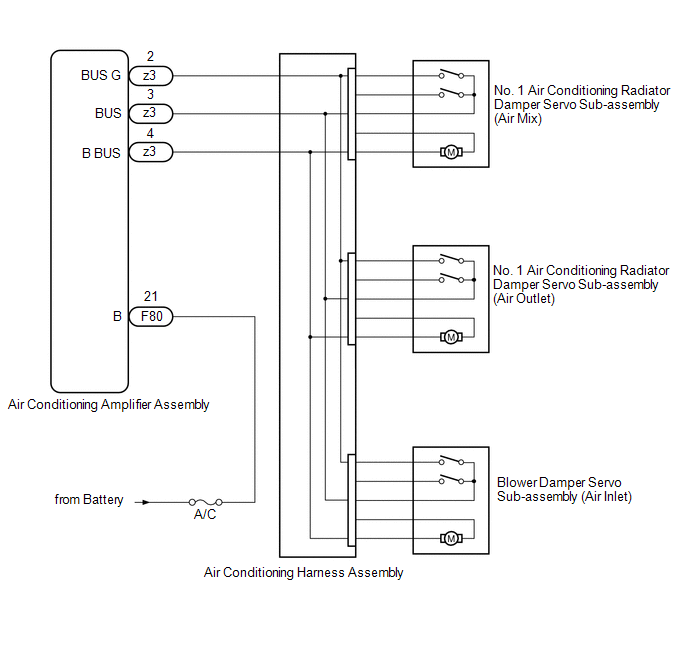

  1. for Front Side
    GTY428766Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

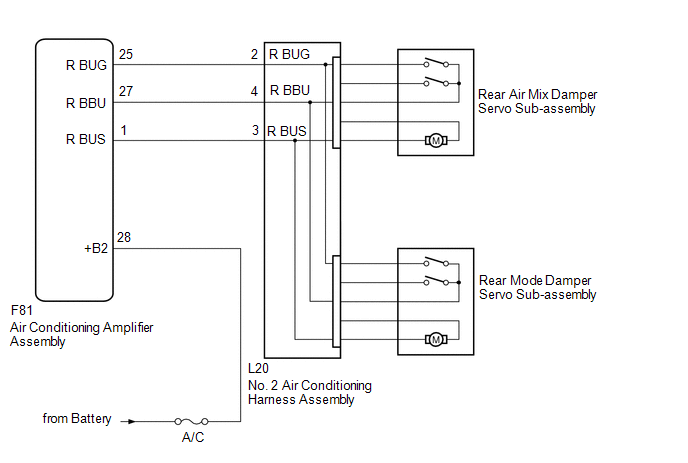

  2. for Rear Side
    GTY436825Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
