DTC B1497: Communication Malfunction (Bus Ic) [11/2016 - ]: Wiring Diagram

  1. for Front Side
    GTY428766Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

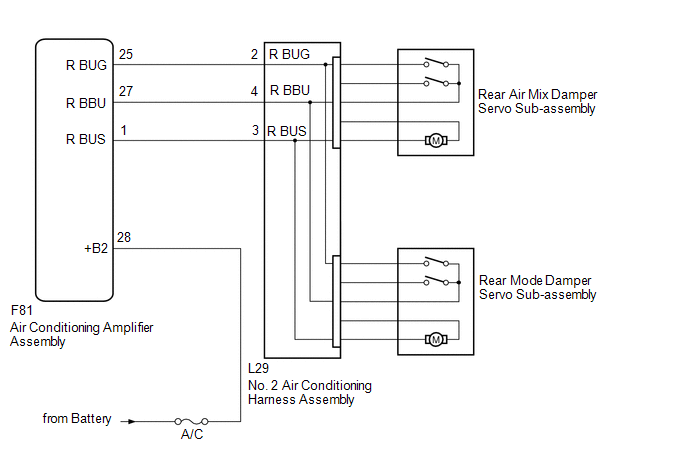

  2. for Rear Side
    GTY710620Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
