DTC B1413: Evaporator Temperature Sensor Circuit [12/2013 - ]: Procedure

1. Connect the Techstream to the DLC3.
2. Turn the ignition switch to ON.
3. Turn the Techstream on.
4. Enter the following menus: Body Electrical / Air Conditioner / Data List.
5. Check the value(s) by referring to the table below.

   Body Electrical > Air Conditioner > Data List

   Tester Display	Measurement Item	Range	Normal Condition	Diagnostic Note
   Evaporator Fin Thermistor	No. 1 cooler thermistor	Min.: -30.00°C (-22.00°F) Max.: 59.60°C (139.28°F)	Actual evaporator temperature displayed	-

   Body Electrical > Air Conditioner > Data List

   Tester Display
   Evaporator Fin Thermistor

   OK

   The display is as specified in the normal condition column.

   Result

   Result	Proceed to
   NG	A
   OK (When troubleshooting according to Problem Symptoms Table)	B
   OK (When troubleshooting according to the DTC)	C

Result:  2

B

PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE. Refer to  PROBLEM SYMPTOMS TABLE [12/2013 - 11/2016]  Refer to  PROBLEM SYMPTOMS TABLE [11/2016 - ]

Result:  3

C

REPLACE AIR CONDITIONING AMPLIFIER ASSEMBLY. Refer to  REMOVAL [12/2013 - ]

Result:  1

A

See step  2

1. Remove the No. 1 cooler thermistor.

   Refer to REMOVAL [12/2013 - 11/2016] Refer to REMOVAL [11/2016 - ]

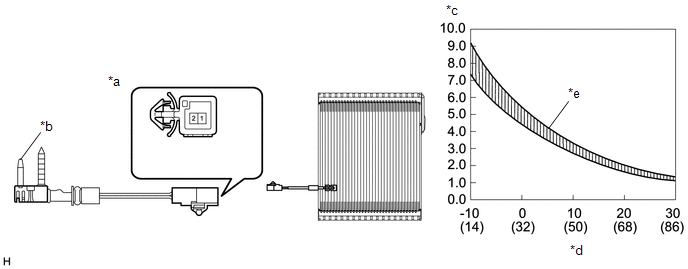

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Component without harness connected (No. 1 Cooler Thermistor)	*b	Sensing Portion
   *c	Resistance (kΩ)	*d	Temperature (°C (°F))
   *e	Allowable Range	-	-

2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   1 - 2	-10°C (14°F)	7.30 to 9.10 kΩ
   	-5°C (23°F)	5.65 to 6.95 kΩ
   	0°C (32°F)	4.40 to 5.35 kΩ
   	5°C (41°F)	3.40 to 4.15 kΩ
   	10°C (50°F)	2.70 to 3.25 kΩ
   	15°C (59°F)	2.14 to 2.58 kΩ
   	20°C (68°F)	1.71 to 2.05 kΩ
   	25°C (77°F)	1.38 to 1.64 kΩ
   	30°C (86°F)	1.11 to 1.32 kΩ

   NOTE:

   • Hold the sensor only by its connector. Touching the sensing portion may change the resistance value.
   • When measuring, the sensor temperature must be the same as the ambient temperature.

   HINT:

   As the temperature increases, the resistance decreases (see the graph).

   Result

   Proceed to
   OK
   NG

Result:  2

NG

REPLACE NO. 1 COOLER THERMISTOR. Refer to  REMOVAL [12/2013 - 11/2016]  Refer to  REMOVAL [11/2016 - ]

Result:  1

OK

See step  3

1. Remove the air conditioning harness assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Front view of wire harness connector (to Air Conditioning Amplifier Assembly)

   Refer to DISASSEMBLY [12/2013 - ]

2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   z3-6 (TEA) - 1	Always	Below 1 Ω
   z3-5 (SGA) - 2	Always	Below 1 Ω

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Front view of wire harness connector (to No. 1 Cooler Thermistor)

   Result

   Proceed to
   OK
   NG

Result:  1

OK

REPLACE AIR CONDITIONING AMPLIFIER ASSEMBLY. Refer to  REMOVAL [12/2013 - ]

Result:  2

NG

REPLACE AIR CONDITIONING HARNESS ASSEMBLY. Refer to  DISASSEMBLY [12/2013 - ]
