Disassembly [12/2013 - 08/2014]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE FRONT DIFFERENTIAL RING GEAR
    1. Put matchmarks on the front differential ring gear and differential case.
      GTY455586Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Matchmark
    2. Remove the 12 bolts from the front differential ring gear.
      GTY314354Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using a plastic hammer, tap on the front differential ring gear to remove it from the differential case.
      GTY142596Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE FRONT DIFFERENTIAL CASE FRONT TAPERED ROLLER BEARING
    1. Using SST, remove the front differential case front tapered roller bearing from the differential case.
      GTY437778Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Turn
      *b Hold
      • SST: 09950-00020
      • SST: 09950-00030
      • SST: 09950-60010
        1. 09951-00480
    2. Using SST, remove the front differential case front tapered roller bearing outer race and shim from the transaxle housing.
      GTY433745Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09308-00010
  3. REMOVE FRONT DIFFERENTIAL CASE REAR TAPERED ROLLER BEARING
    1. Using SST, remove the front differential case rear tapered roller bearing from the differential case.
      GTY447030Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Turn
      *b Hold
      • SST: 09950-00020
      • SST: 09950-00030
      • SST: 09950-60010
        1. 09951-00480
    2. Using SST, remove the front differential case rear tapered roller bearing outer race from the transaxle case sub-assembly.
      GTY453185Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09308-00010
  4. REMOVE FRONT DIFFERENTIAL PINION SHAFT STRAIGHT PIN

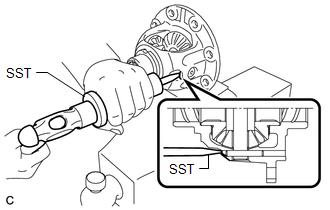

    1. Using SST and a hammer, loosen the staked part of the differential case.
      GTY426323Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09930-00010
    2. Using a 3 mm pin punch and a hammer, remove the front differential pinion shaft straight pin from the differential case.
      GTY128999Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Before removing the front differential pinion shaft straight pin, release the staked part of the differential case with a pin punch.

  5. REMOVE FRONT NO. 1 DIFFERENTIAL PINION SHAFT
    1. Remove the front No. 1 differential pinion shaft from the differential case.
      GTY314187Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE DIFFERENTIAL SIDE GEAR
    1. Remove the 2 front differential pinions, 2 front differential pinion thrust washers, 2 differential side gears and 2 front No. 1 differential side gear thrust washers from the differential case.
      GTY438340Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Front Differential Pinion
      *2 Front Differential Pinion Thrust Washer
      *3 Differential Side Gear
      *4 Front No. 1 Differential Side Gear Thrust Washer
  7. REMOVE FRONT DRIVE SHAFT OIL SEAL RH
    1. Using SST and a hammer, remove the front drive shaft oil seal RH from the transaxle housing.
      GTY436437Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09950-60010
        1. 09951-00550
      • SST: 09950-70010
        1. 09951-07200
  8. REMOVE FRONT DRIVE SHAFT OIL SEAL LH

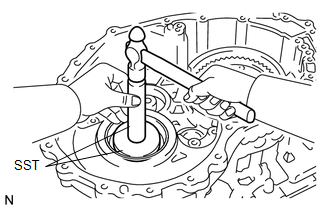

    1. Using SST and a hammer, remove the front drive shaft oil seal LH from the transaxle case sub-assembly.
      GTY455216Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09950-60010
        1. 09951-00650
      • SST: 09950-70010
        1. 09951-07100
