Components [11/2015 - 11/2016]: Illustration
WARNING: This page is about a different variant/trim than selected.
| Callout | Description | Callout | Description |
| *1 | AUTOMATIC TRANSAXLE ASSEMBLY | *2 | TRANSFER AND TRANSAXLE SETTING STUD BOLT |
| *3 | TRANSFER ASSEMBLY | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part | |
| * | Precoated part | - | - |

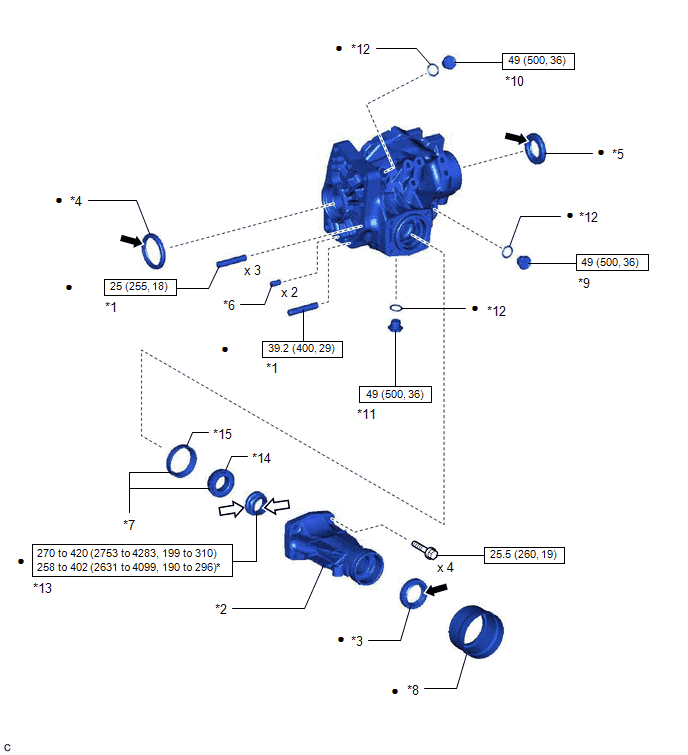

| Callout | Description | Callout | Description |
| *1 | TRANSFER AND TRANSAXLE SETTING STUD BOLT | *2 | TRANSFER EXTENSION HOUSING SUB-ASSEMBLY |
| *3 | TRANSFER EXTENSION HOUSING TYPE T OIL SEAL | *4 | TRANSFER CASE OIL SEAL |
| *5 | TRANSFER CASE OIL SEAL RH | *6 | TRANSFER CASE STRAIGHT PIN |
| *7 | REAR TRANSFER DRIVEN PINION BEARING | *8 | TRANSFER EXTENSION HOUSING DUST DEFLECTOR |
| *9 | NO. 1 TRANSFER CASE PLUG | *10 | NO. 2 TRANSFER CASE PLUG |
| *11 | TRANSFER DRAIN PLUG | *12 | GASKET |
| *13 | GEAR NUT | *14 | REAR TRANSFER DRIVEN PINION BEARING (INNER RACE) |
| *15 | REAR TRANSFER DRIVEN PINION BEARING (OUTER RACE) | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | * | For use with SST | |
| • | Non-reusable part | MP grease | |
| Hypoid Gear Oil LSD | * | Precoated part |
| Callout | Description | Callout | Description |
| *1 | BEARING CAP | *2 | BREATHER OIL DEFLECTOR |
| *3 | DRIVEN PINION | *4 | FRONT TRANSFER DRIVEN PINION BEARING |
| *5 | NO. 1 TRANSFER OUTPUT SHAFT SPACER | *6 | NO. 2 TRANSFER RING GEAR MOUNTING CASE WASHER |
| *7 | RING GEAR | *8 | RING GEAR MOUNTING CASE BEARING (for RH side) |
| *9 | RING GEAR MOUNTING CASE BEARING (for LH side) | *10 | TRANSFER CASE BREATHER PLUG |
| *11 | TRANSFER CASE COVER SUB-ASSEMBLY | *12 | TRANSFER CASE STRAIGHT PIN |
| *13 | TRANSFER OUTPUT SHAFT WASHER | *14 | TRANSFER RING GEAR MOUNTING CASE |
| *15 | RING GEAR MOUNTING CASE PLATE WASHER | *16 | TRANSFER PINION BEARING SPACER |
| *17 | TRANSFER CASE SUB-ASSEMBLY | *18 | RING GEAR MOUNTING CASE BEARING (INNER RACE) |
| *19 | RING GEAR MOUNTING CASE BEARING (OUTER RACE) | *20 | FRONT TRANSFER DRIVEN PINION BEARING (INNER RACE) |
| *21 | FRONT TRANSFER DRIVEN PINION BEARING (OUTER RACE) | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part | |
| Adhesive 1324 | * | Precoated part |
