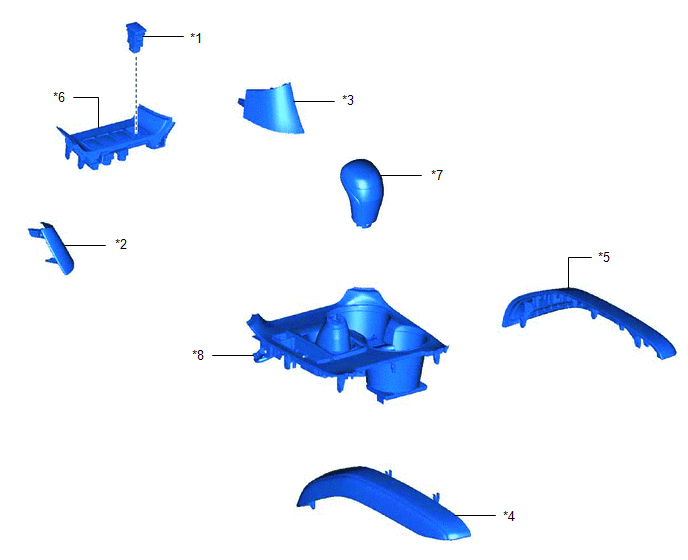

Components [12/2013 - ]: Illustration
WARNING: This page is about a different variant/trim than selected.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| *1 |
DIFFERENTIAL LOCK SWITCH |
*2 |
FRONT PANEL GARNISH LH |
| *3 |
FRONT PANEL GARNISH RH |
*4 |
NO. 1 CONSOLE UPPER PANEL GARNISH |
| *5 |
NO. 2 CONSOLE UPPER PANEL GARNISH |
*6 |
NO. 2 SWITCH HOLE BASE |
| *7 |
SHIFT LEVER KNOB SUB-ASSEMBLY |
*8 |
UPPER CONSOLE PANEL SUB-ASSEMBLY |
