Removal [12/2013 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.

PRECAUTION
NOTE:
After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notice before proceeding with work.

Refer to INITIALIZATION [12/2013 - 11/2016] , or refer to INITIALIZATION [11/2016 - ]
DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

Refer to INITIALIZATION [12/2013 - 11/2016] , or refer to INITIALIZATION [11/2016 - ]
REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 17
REMOVE INSTRUMENT PANEL FINISH PANEL END LH
Refer to PROCEDURE - Step 16
REMOVE FRONT DOOR SCUFF PLATE LH
Refer to PROCEDURE - Step 7 , or refer to PROCEDURE - Step 7 , or refer to PROCEDURE - Step 7
REMOVE COWL SIDE TRIM SUB-ASSEMBLY LH
Refer to PROCEDURE - Step 8 , or refer to PROCEDURE - Step 8 , or refer to PROCEDURE - Step 8
REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY
Refer to PROCEDURE - Step 19
REMOVE INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY WITH MAIN BODY ECU
Refer to PROCEDURE - Step 10
REMOVE WIRE HARNESS CLAMP BRACKET
Refer to PROCEDURE - Step 23 , or refer to PROCEDURE - Step 23

REMOVE 4WD ECU ASSEMBLY

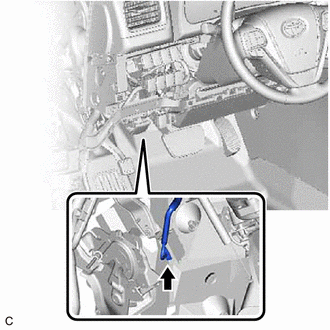

Disconnect the 4WD ECU assembly connector.

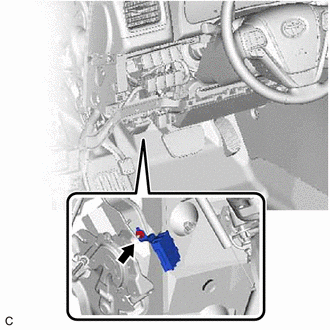

Remove the nut and 4WD ECU assembly from the bracket.
