Parts Location [12/2013 - ]: Illustration
WARNING: This page is about a different variant/trim than selected.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

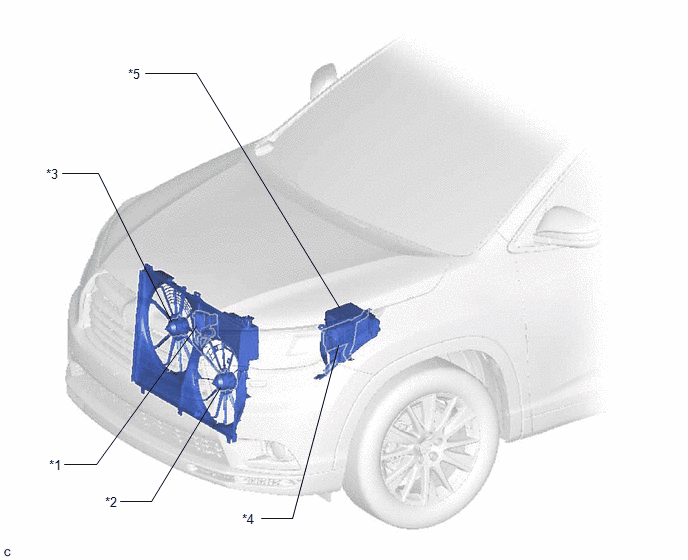

| *1 |
COOLING FAN ECU |
*2 |
COOLING FAN MOTOR |
| *3 |
NO. 2 COOLING FAN MOTOR |
*4 |
ECM |
| *5 |
ENGINE ROOM RELAY BLOCK AND JUNCTION BLOCK ASSEMBLY
- FAN NO. 1 RELAY |
- |
- |
