Registration [12/2013 - ]: Procedure

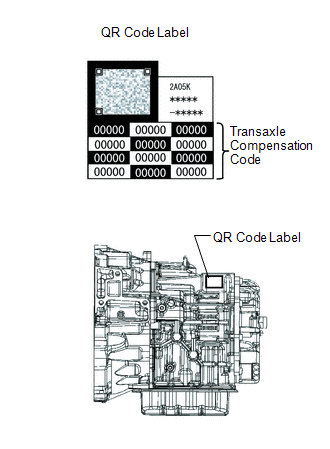

1. Record the transaxle compensation code specified on the QR label.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   The transaxle compensation code is imprinted on the QR label.

2. Move the shift lever to N or P.
3. Connect the Techstream to the DLC3.
4. Turn the ignition switch to ON.
   NOTE:

   Do not start the engine.

5. Turn the Techstream on.
6. Enter the following menus: Powertrain / Engine and ECT / Utility / A/T Code Registration.

   Powertrain > Engine > Utility

   Tester Display
   A/T Code Registration

7. Select "Set Compensation Code".
8. Register the compensation code.
   1. Press "Input".
   2. Manually input the transaxle compensation code. The code is a 60-digit alphanumeric value printed on the QR label. After inputting the code, press "OK".
9. Check that the compensation code displayed on the screen is correct by comparing it with the 60-digit alphanumeric value on the QR label.
   NOTE:

   If an incorrect transaxle compensation code is input into the ECM, shift shock will occur.

10. Press "NEXT" to set the compensation code to the ECM.

    HINT:

    • If the registration process fails, the compensation code may be incorrect. Check the compensation code again.
    • If the attempted compensation code is correct, a problem with the wire harness or a bad connection with the DLC3 may cause a registration failure. Check the wire harness and the DLC3 connection. If no problem is found, the ECM may be malfunctioning. Check the ECM and repeat this operation.
11. Press "EXIT".

HINT:

The following operation is available for use with ECMs that can transmit the registered transaxle compensation code to Techstream.

1. Move the shift lever to N or P.
2. Connect the Techstream to the DLC3.
3. Turn the ignition switch to ON.
   NOTE:

   Do not start the engine.

4. Turn the Techstream on.

   HINT:

   The transaxle compensation code is imprinted on the QR label.

5. Read the transaxle compensation code.
   1. Enter the following menus: Powertrain / Engine and ECT / Utility / A/T Code Registration.

      Powertrain > Engine > Utility

      Tester Display
      A/T Code Registration

   2. Select "Read Compensation Code".
   3. Press "Save".
   4. Press "Save" or "Overwrite".

      HINT:

      Press "Overwrite".

      NOTE:

      Do not use the code specified on the transaxle QR label even if the transaxle compensation code cannot be read using the Techstream. The code printed on an in-service transaxle may not match its current characteristics. Replace the ECM with a new one and perform a road test to allow the ECM to learn.

   5. Press "EXIT".
   6. Turn the ignition switch off.
6. Replace the ECM.
7. Set the transaxle compensation code.
   1. Turn the ignition switch to ON.
   2. Turn the Techstream on.
   3. Enter the following menus: Powertrain / Engine and ECT / Utility / A/T Code Registration.

      Powertrain > Engine > Utility

      Tester Display
      A/T Code Registration

   4. Select "Set Compensation Code".
   5. Press "Open".
   6. Press "Open" again to proceed.
   7. Press "Exit".
