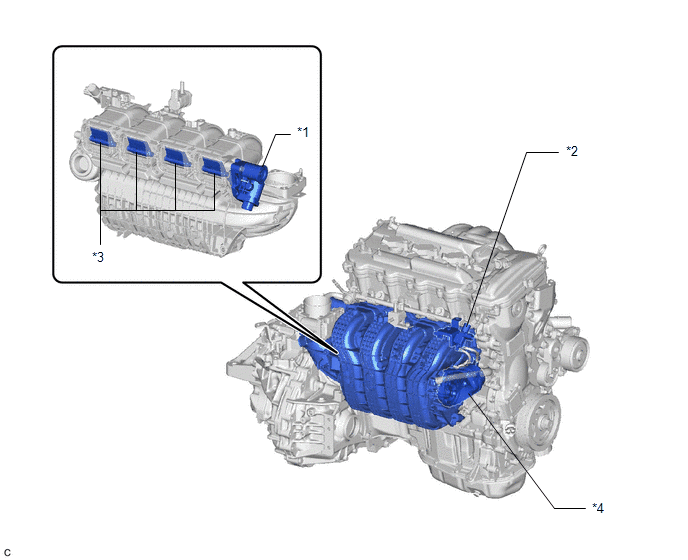

Parts Location [12/2013 - ]: Illustration
WARNING: This page is about a different variant/trim than selected.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| *1 |
INTAKE AIR CONTROL VALVE ACTUATOR (for TCV) |
*2 |
VACUUM SWITCHING VALVE ASSEMBLY (for ACIS) |
| *3 |
TUMBLE CONTROL VALVE (TCV) |
*4 |
INTAKE AIR CONTROL VALVE (for ACIS) |
