Removal [08/2014 - 11/2016]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE AUTOMATIC TRANSAXLE ASSEMBLY

    Refer to REMOVAL [12/2013 - 11/2016]

  2. REMOVE TORQUE CONVERTER ASSEMBLY

    See step  14

  3. REMOVE AUTOMATIC TRANSAXLE OIL PAN SUB-ASSEMBLY
    1. Remove the 19 bolts and automatic transaxle oil pan sub-assembly from the automatic transaxle assembly.
      GTY365200Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Some fluid will remain in the automatic transaxle oil pan sub-assembly. Remove all the bolts and carefully remove the automatic transaxle oil pan sub-assembly.

  4. REMOVE AUTOMATIC TRANSAXLE OIL PAN GASKET
    1. Remove the automatic transaxle oil pan gasket from the automatic transaxle oil pan sub-assembly.
  5. REMOVE TRANSMISSION OIL CLEANER MAGNET
    1. Remove the 4 transmission oil cleaner magnets from the automatic transaxle oil pan sub-assembly.
      GTY475136Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Transmission Oil Cleaner Magnet
    2. Examine the particles in the automatic transaxle oil pan sub-assembly.
      GTY101912Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Collect any steel chips with the removed transmission oil cleaner magnets. Look carefully at the chips and particles in the automatic transaxle oil pan sub-assembly and on the transmission oil cleaner magnets to see the type of wear which might be found in the automatic transaxle assembly.

        Result

        Steel (magnetic)

        Bearing, gear and plate wear

        Brass (non-magnetic)

        Bushing wear

  6. REMOVE VALVE BODY OIL STRAINER ASSEMBLY

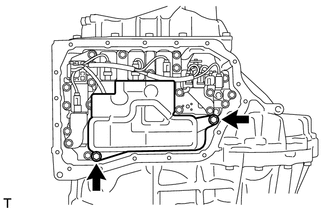

    1. Remove the 2 bolts and valve body oil strainer assembly from the transmission valve body assembly.
      GTY384527Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the O-ring from the valve body oil strainer assembly.
      GTY479875Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 O-ring
  7. REMOVE TRANSMISSION VALVE BODY ASSEMBLY

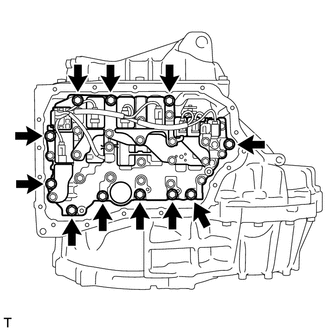

    1. Remove the 11 bolts and transmission valve body assembly from the automatic transaxle assembly.
      GTY167491Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      When removing the transmission valve body assembly, be careful not to allow the transmission revolution sensor and automatic transaxle assembly to interfere with each other.

  8. REMOVE NO. 1 GOVERNOR APPLY GASKET
    1. Remove the 2 No. 1 governor apply gaskets from the automatic transaxle assembly.
      GTY363566Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE MANUAL VALVE
    1. Remove the manual valve from the transmission valve body assembly.
      GTY438644Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
