Reassembly [12/2013 - ]: Procedure
WARNING: This page is about a different variant/trim than selected.

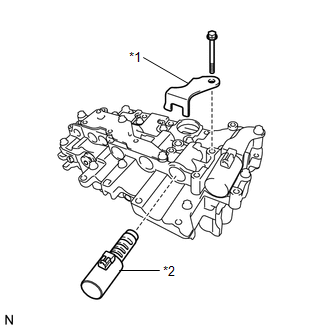

- INSTALL SHIFT SOLENOID VALVE SL4
- Coat the shift solenoid valve SL4 with ATF.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
| *1 |
No. 4 Solenoid Lock Plate |
| *2 |
Shift Solenoid Valve SL4 |
- Install the shift solenoid valve SL4 and No. 4 solenoid lock plate to the transmission valve body assembly with the bolt.
Torque: 10.8 N*m (110 kgf*cm, 8 ft.*lbf)

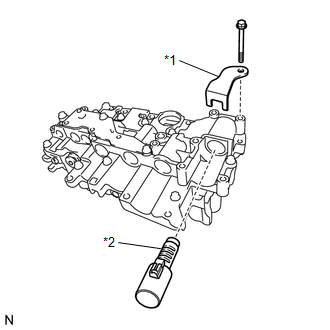

- INSTALL SHIFT SOLENOID VALVE SL3
- Coat the shift solenoid valve SL3 with ATF.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
| *1 |
No. 3 Solenoid Lock Plate |
| *2 |
Shift Solenoid Valve SL3 |
- Install the shift solenoid valve SL3 and No. 3 solenoid lock plate to the transmission valve body assembly with the bolt.
Torque: 10.8 N*m (110 kgf*cm, 8 ft.*lbf)

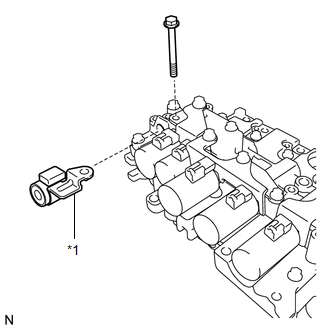

- INSTALL SHIFT SOLENOID VALVE SLU
- Coat the shift solenoid valve SLU with ATF.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
| *1 |
Shift Solenoid Valve SLU |
- Install the shift solenoid valve SLU to the transmission valve body assembly.
- INSTALL SHIFT SOLENOID VALVE SLT
- Coat the shift solenoid valve SLT with ATF.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
| *1 |
Solenoid Lock Plate |
| *2 |
Shift Solenoid Valve SLT |
- Install the shift solenoid valve SLT and solenoid lock plate to the transmission valve body assembly with the bolt.
Torque: 10.8 N*m (110 kgf*cm, 8 ft.*lbf)
- INSTALL SHIFT SOLENOID VALVE SL1
- Coat the shift solenoid valve SL1 with ATF.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
| *1 |
Shift Solenoid Valve SL1 |
- Install the shift solenoid valve SL1 to the transmission valve body assembly.
- INSTALL SHIFT SOLENOID VALVE SL2
- Coat the shift solenoid valve SL2 with ATF.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
| *1 |
Clamp |
| *2 |
No. 2 Solenoid Lock Plate |
| *3 |
Shift Solenoid Valve SL2 |
- Install the shift solenoid valve SL2, clamp and No. 2 solenoid lock plate to the transmission valve body assembly with the 2 bolts.
Torque: 10.8 N*m (110 kgf*cm, 8 ft.*lbf)
- INSTALL SHIFT SOLENOID VALVE SL
- Coat the shift solenoid valve SL with ATF.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
| *1 |
Shift Solenoid Valve SL |
- Install the shift solenoid valve SL to the transmission valve body assembly with the bolt.
Torque: 10.8 N*m (110 kgf*cm, 8 ft.*lbf)
- INSTALL TRANSMISSION WIRE
See step 1 , or see step 1
- INSTALL TRANSMISSION REVOLUTION SENSOR
See step 1 , or see step 1
