Inspection [12/2013 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.

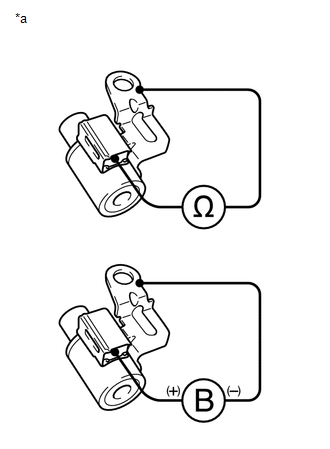

  1. INSPECT SHIFT SOLENOID VALVE SL
    1. Measure the resistance according to the value(s) in the table below.
      GTY455970Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component without harness connected
      (Shift Solenoid Valve SL)

      Standard Resistance

      Tester Connection Condition Specified Condition
      Solenoid Connector (SL) - Solenoid Body (SL) 20°C (68°F) 11 to 15 Ω

      If the value is not as specified, replace the shift solenoid valve SL.

    2. Connect a positive (+) lead from the battery to the terminal of the solenoid connector and a negative (-) lead to the solenoid body, and check the operation of the valve.
      NOTE:

      When using battery voltage during this inspection, do not bring the positive (+) and negative (-) tester probes too close to each other as a short circuit may occur.

      OK

      The valve moves and makes an operating sound.

      If the operation is not as specified, replace the shift solenoid valve SL.

  2. INSPECT SHIFT SOLENOID VALVE SLT
    1. Measure the resistance according to the value(s) in the table below.
      GTY423894Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component without harness connected
      (Shift Solenoid Valve SLT)
      *b 21 W Bulb

      Standard Resistance

      Tester Connection Condition Specified Condition
      1 - 2 20°C (68°F) 5.0 to 5.6 Ω

      If the value is not as specified, replace the shift solenoid valve SLT.

    2. Connect a positive (+) lead from the battery with a 21 W bulb to terminal 2 and a negative (-) lead to terminal 1 of the solenoid valve connector, and check the operation of the valve.
      NOTE:

      When using battery voltage during this inspection, do not bring the positive (+) and negative (-) tester probes too close to each other as a short circuit may occur.

      OK

      The valve moves and makes an operating sound.

      If the operation is not as specified, replace the shift solenoid valve SLT.

  3. INSPECT SHIFT SOLENOID VALVE SLU

    HINT:

    Use the same procedure as for the shift solenoid valve SLT.

  4. INSPECT SHIFT SOLENOID VALVE SL1

    HINT:

    Use the same procedure as for the shift solenoid valve SLT.

  5. INSPECT SHIFT SOLENOID VALVE SL2

    HINT:

    Use the same procedure as for the shift solenoid valve SLT.

  6. INSPECT SHIFT SOLENOID VALVE SL3

    HINT:

    Use the same procedure as for the shift solenoid valve SLT.

  7. INSPECT SHIFT SOLENOID VALVE SL4

    HINT:

    Use the same procedure as for the shift solenoid valve SLT.
