Disassembly [12/2013 - ]: Procedure
WARNING: This page is about a different variant/trim than selected.
- REMOVE TRANSMISSION REVOLUTION SENSOR
See step 2 , or see step 2
- REMOVE TRANSMISSION WIRE
See step 2 , or see step 2

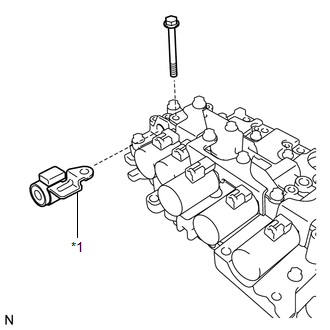

- REMOVE SHIFT SOLENOID VALVE SL
- Remove the bolt and shift solenoid valve SL from the transmission valve body assembly.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
| *1 |
Shift Solenoid Valve SL |
- REMOVE SHIFT SOLENOID VALVE SL2
- Remove the 2 bolts, clamp, No. 2 solenoid lock plate and shift solenoid valve SL2 from the transmission valve body assembly.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
| *1 |
Clamp |
| *2 |
No. 2 Solenoid Lock Plate |
| *3 |
Shift Solenoid Valve SL2 |
- REMOVE SHIFT SOLENOID VALVE SL1
- Remove the shift solenoid valve SL1 from the transmission valve body assembly.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
| *1 |
Shift Solenoid Valve SL1 |
- REMOVE SHIFT SOLENOID VALVE SLT
- Remove the bolt, solenoid lock plate and shift solenoid valve SLT from the transmission valve body assembly.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
| *1 |
Solenoid Lock Plate |
| *2 |
Shift Solenoid Valve SLT |
- REMOVE SHIFT SOLENOID VALVE SLU
- Remove the shift solenoid valve SLU from the transmission valve body assembly.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
| *1 |
Shift Solenoid Valve SLU |
- REMOVE SHIFT SOLENOID VALVE SL3

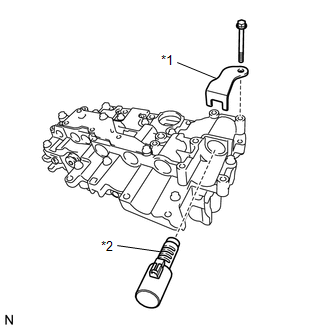

- Remove the bolt, No. 3 solenoid lock plate and shift solenoid valve SL3 from the transmission valve body assembly.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
| *1 |
No. 3 Solenoid Lock Plate |
| *2 |
Shift Solenoid Valve SL3 |
- REMOVE SHIFT SOLENOID VALVE SL4

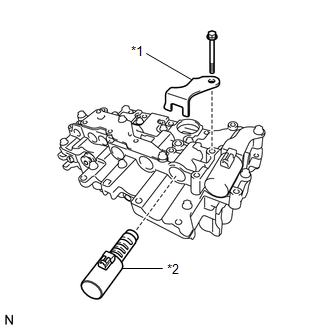

- Remove the bolt, No. 4 solenoid lock plate and shift solenoid valve SL4 from the transmission valve body assembly.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
| *1 |
No. 4 Solenoid Lock Plate |
| *2 |
Shift Solenoid Valve SL4 |
